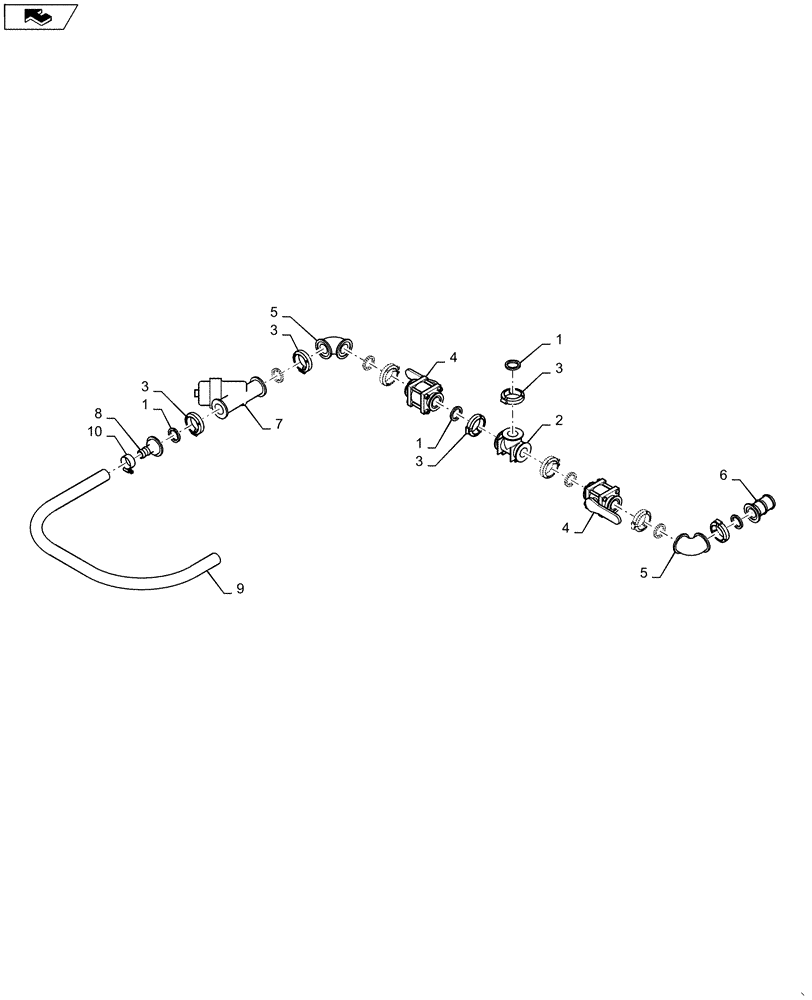

Запчасти Case IH 1255 (63.100.AG[01]) - LIQUID FERTILIZER TANK VALVE FOR 12 ROW (63) - CHEMICAL APPLICATORS

1

408348A1

GASKET

1-1/2"

8шт.

2

405779A1

TEE,2" Port Flanged Tee

Fitting 2" Manifold

1шт.

3

406040A1

CLAMP,90-100 in/lbs

2 "

8шт.

4

405800A1

VALVE,2" Flange Ball Valve

2" with C-Flange

2шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

90°

2шт.

6

405780A1

FITTING,2" Flange x 2" Hose Barb

2 " Manifold Barb

1шт.

7

405798A1

STRAINER ELEMENT,AAH

2"

1шт.

8

86990856

FITTING,2" Flange x 1-1/4" Hose Barb

2" x 1.25 "

1шт.

9

86984447

HOSE,1.25" ID BULK x 100.00'

Cut to 1730mm

1шт.

10

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

1шт.
