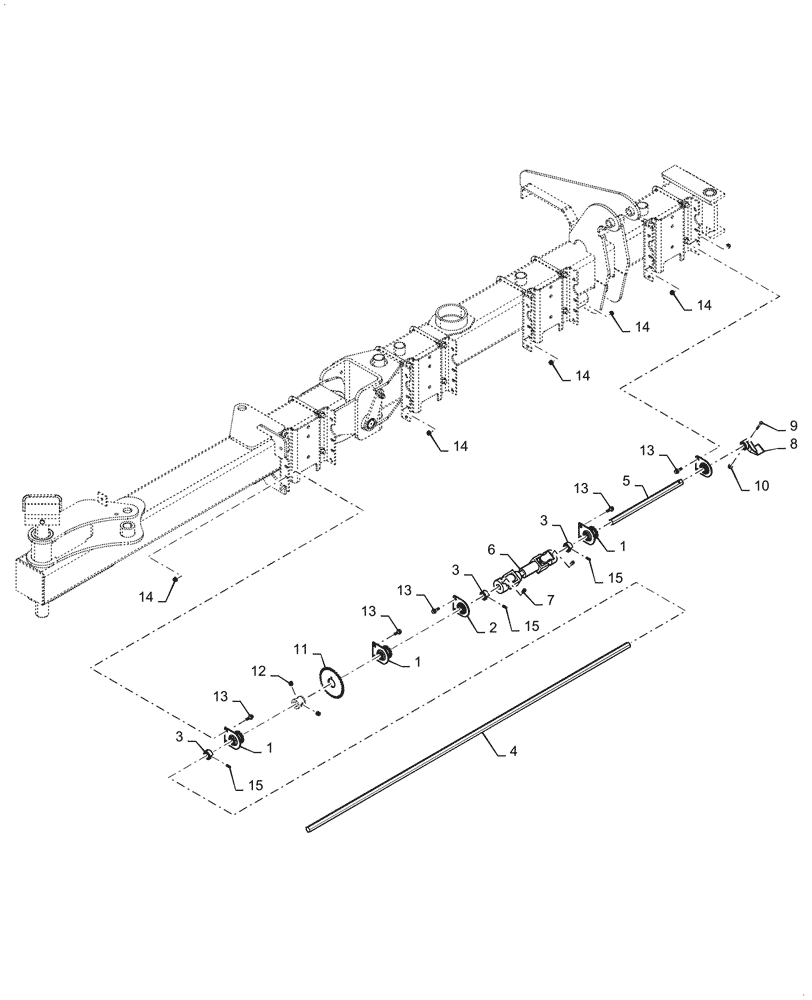

Запчасти Case IH 1255 (61.901.AI[05]) - SEED METER, CHAIN DRIVEN SHAFT, OUTER RIGHT, 12 ROW 2 POINT HITCH (61) - METERING SYSTEM

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

Sprocket, 12 Tooth

4шт.

2

102724A2

BALL BEARING,22.6mm ID

Hanger

1шт.

3

22224

COLLAR

Stop Lock

3шт.

4

87623391

SHAFT

Hex, .875" x 2026mm

1шт.

5

87589426

SHAFT

Hex, .875 x 17.4

1шт.

6

87444140

DRIVE SHAFT

Coupling Telescoping

1шт.

7

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

8

87539852

COUPLING

Cross Over Drive

1шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

10

20356

NUT,1/4"-20, GB

1шт.

11

353037A1

SPROCKET

Assy, 34 Tooth

1шт.

Used for Hydraulic Drive Units

1шт.

12

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

15

84580735

SET SCREW

Collar Stop Lock

2шт.
