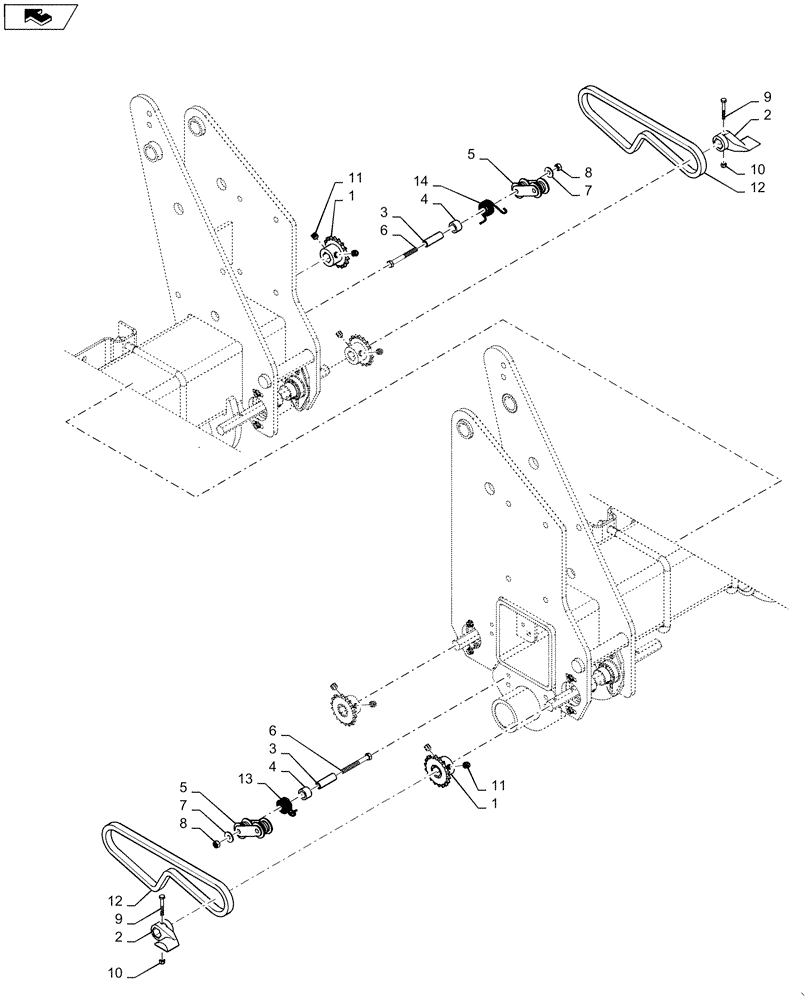

Запчасти Case IH 1255 (61.901.AF[05]) - METERING DRIVE CROSS OVER FOR 12 ROW (61) - METERING SYSTEM

1

103681A1

SPROCKET

18 Tooth

4шт.

2

87539852

COUPLING

Cross Over Drive

2шт.

3

84225052

BUSHING,12.57mm ID x 15.88mm OD x 51mm L

Tensioner Pivot

2шт.

4

87477259

BUSHING

Tensioner Pivot

2шт.

5

87458905

ROLLER

Chain

2шт.

6

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

9

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

20356

NUT,1/4"-20, GB

2шт.

11

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

12

84387533

CHAIN

Cross Over Drive

2шт.

13

87624898

TENSION SPRING

RH, Idler

1шт.

14

87624897

TENSION SPRING

LH, Idler

1шт.
