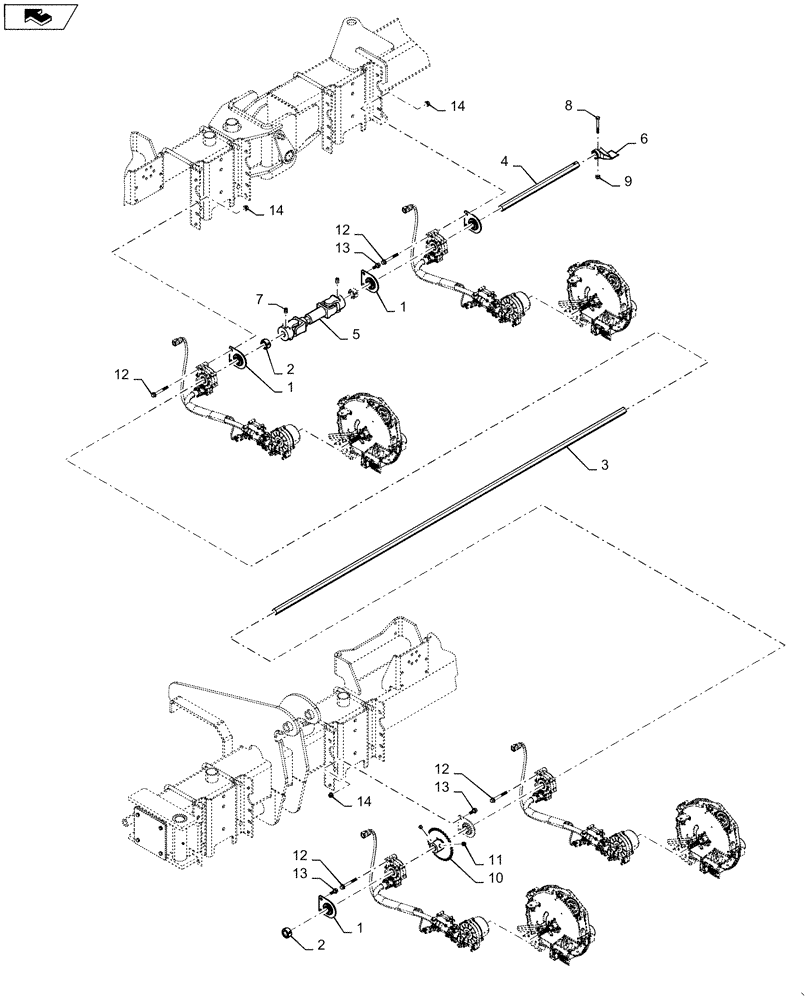

Запчасти Case IH 1255 (61.901.AF[02]) - SEED METER, CABLE DRIVEN SHAFT, OUTER LEFT FOR 12 ROW (61) - METERING SYSTEM

1

102724A2

BALL BEARING,22.6mm ID

Hanger

5шт.

2

22224

COLLAR

Lock Stop

3шт.

3

87623391

SHAFT

Hex .875" x 2026mm

1шт.

4

87589426

SHAFT

Hex .875" x 17.4"

1шт.

5

87444140

DRIVE SHAFT

Telescoping

1шт.

6

87539852

COUPLING

Cross Over Drive

1шт.

7

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

8

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

9

20356

NUT,1/4"-20, GB

1шт.

10

353037A1

SPROCKET

34 Tooth

1шт.

11

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

12

84553071

FLANGE BOLT

3/8 x 3"

8шт.

13

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

15

84580735

SET SCREW

Stop Lock Collar

6шт.
