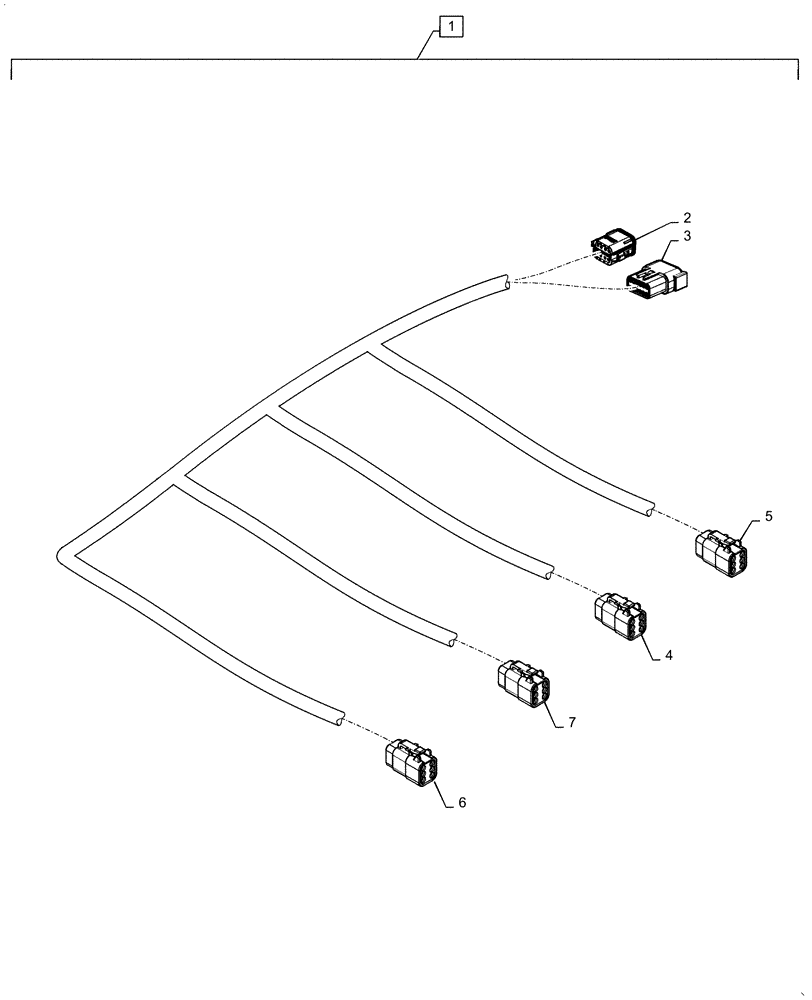

Запчасти Case IH 1255 (55.100.AA[13]) - LH, HARNESS ASSY, SEED SENSOR, 12 ROW WING (55) - ELECTRICAL SYSTEMS

1

84539985

WIRE HARNESS

Seed Sensor, 12 Row, Incl 2 - 7

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

X-942, Wing Clutches

1шт.

2

84806312

LOCKING TAB,Wedge Lock

X-942, Wing Clutches

1шт.

2

84068583

PLUG,12 - 16 Ga, White

X-942, Wing Clutches

3шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

X-942, Wing Clutches

4шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X-942, Wing Clutches

1шт.

3

87700155

ELEC CONNECTOR,Female, 12 Cavities

X-930, Wing Seed Sensor

1шт.

3

87705201

WEDGE

X-930, Wing Seed Sensor

1шт.

3

8487680

REGULATOR

X-930, Wing Seed Sensor

6шт.

3

87696141

TERMINAL

X-930, Wing Seed Sensor

6шт.

4

87700107

ELEC CONNECTOR

X-880-3, Clutch and Seed 3/10

1шт.

4

87705582

ELEC CONNECTOR

X-880-3, Clutch and Seed 3/10

1шт.

4

84807680

PLUG

X-880-3, Clutch and Seed 3/10

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-3, Clutch and Seed 3/10

5шт.

5

87700107

ELEC CONNECTOR

X-880-4, Clutch and Seed 4/9

1шт.

5

87705582

ELEC CONNECTOR

X-880-4, Clutch and Seed 4/9

1шт.

5

84807680

PLUG

X-880-4, Clutch and Seed 4/9

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-4, Clutch and Seed 4/9

5шт.

6

87700107

ELEC CONNECTOR

X-880-1, Clutch and Seed 1/12

1шт.

6

87705582

ELEC CONNECTOR

X-880-1, Clutch and Seed 1/12

1шт.

6

84807680

PLUG

X-880-1, Clutch and Seed 1/12

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-1, Clutch and Seed 1/12

5шт.

7

87700107

ELEC CONNECTOR

X-880-2, Clutch and Seed 2/11

1шт.

7

87705582

ELEC CONNECTOR

X-880-2, Clutch and Seed 2/11

1шт.

7

84807680

PLUG

X-880-2, Clutch and Seed 2/11

1шт.

7

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

X-880-2, Clutch and Seed 2/11

5шт.
