(44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 12 ROW

Запчасти Case IH 1255 (44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 12 ROW (44) - WHEELS

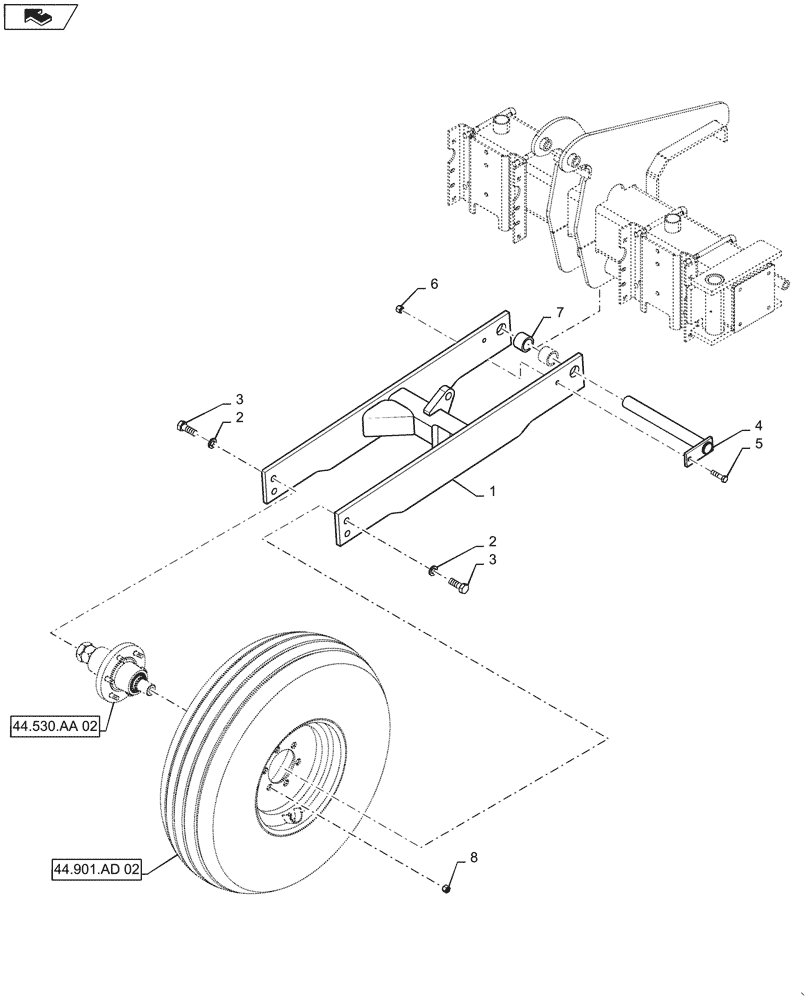

Схема запчастей Case IH 1255 - (44.901.AA[02]) - WING WHEEL ASSEMBLY FOR 12 ROW (44) - WHEELS
44.530.aa 02
2
5
4
1
3
6
home
8
7
3
2
44.901.ad 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87488828

FRAME

Wing Wheel Painted Red

2шт.

2

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

3

9635076

BOLT

.750 x 2.00 Gr 8

4шт.

4

87632193

PIVOT PIN

Wing Wheel

2шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

87530607

NUT

1/2"

2шт.

7

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

2.0 OD x 1.5 ID

4шт.

8

F23214

WHEEL NUT

1/2 - 20"

1шт.
