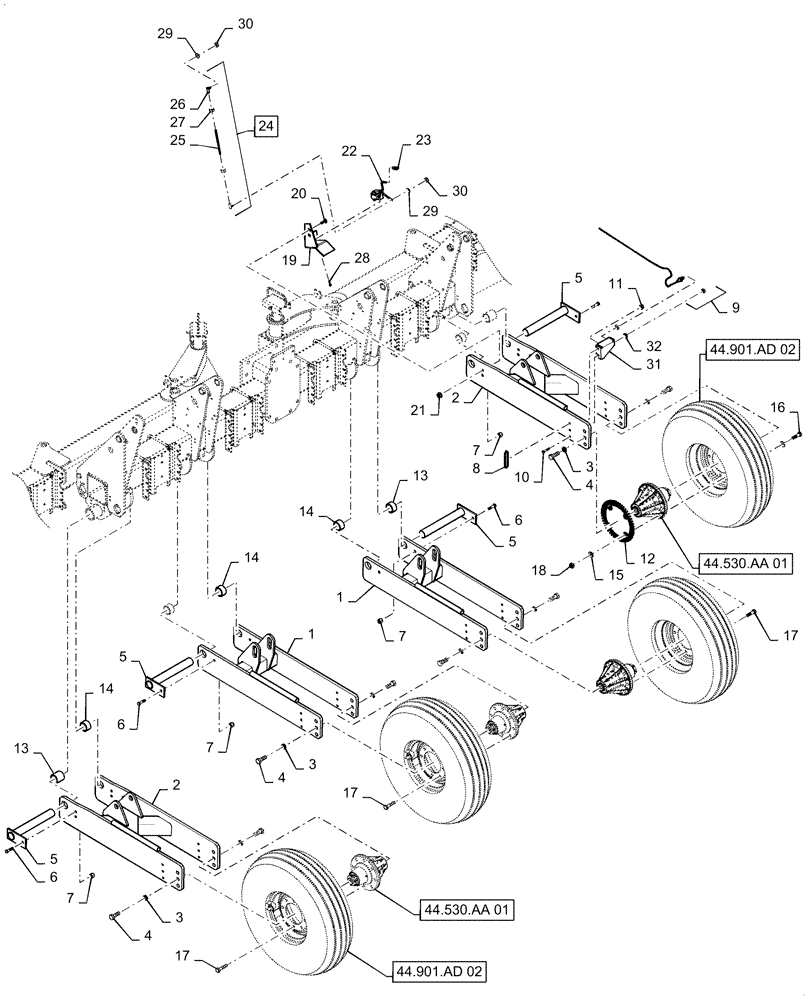

Запчасти Case IH 1255 (44.901.AA[01]) - CARRYING WHEEL ASSEMBLY FOR 12 AND 16 ROW (44) - WHEELS

1

84124242

FRAME

Arm, Inner Wheel Red

2шт.

2

84123710

FRAME

Arm, Outer Wheel Red

2шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

4

9635076

BOLT

.750 x 2.00 Gr 8

8шт.

5

87503053

PIN

Center Wheel Pivot

4шт.

6

80281058

SCREW

.500 x 2.00

4шт.

7

87530607

NUT

1/2"

4шт.

8

18983

LOCK WASHER

2шт.

9

324049A1

SENSOR

Hall Effect, Zero Speed

1шт.

10

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

12

87650710

SPROCKET

Speed Sendor, LC 50 Tooth

1шт.

13

87503067

BUSHING

2.50 x 2.0

2шт.

14

87632788

BUSHING

2.50 x 2.0

6шт.

15

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

8шт.

16

87477175

BOLT

.625 x 2.25

8шт.

17

87682780

BOLT

Wheel .625

24шт.

18

86637932

JAM NUT,Jam, 5/8"-18, G5

4шт.

19

87502038

CABLE TIE

Small

1шт.

20

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

404202A1

SENSOR

Toolbar Position

1шт.

23

225295C1

ELEC CONNECTOR,Female, 3 Pin

Toolbar Position

1шт.

24

382987A1

STUD

Potentiometer, Incl 25 - 27

1шт.

25

127474A1

STUD

Potentiometer Control

1шт.

26

A10329

BALL JOINT,1/4" - 28 x 1"

1шт.

27

86509309

NUT,1/4"-28, G5

1шт.

28

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

80682

LOCK WASHER,1/4"

2шт.

30

86509309

NUT,1/4"-28, G5

2шт.

31

87715910

BRACKET

Wheel Speed Sensor, Painted Red

1шт.

32

18983

LOCK WASHER

2шт.
