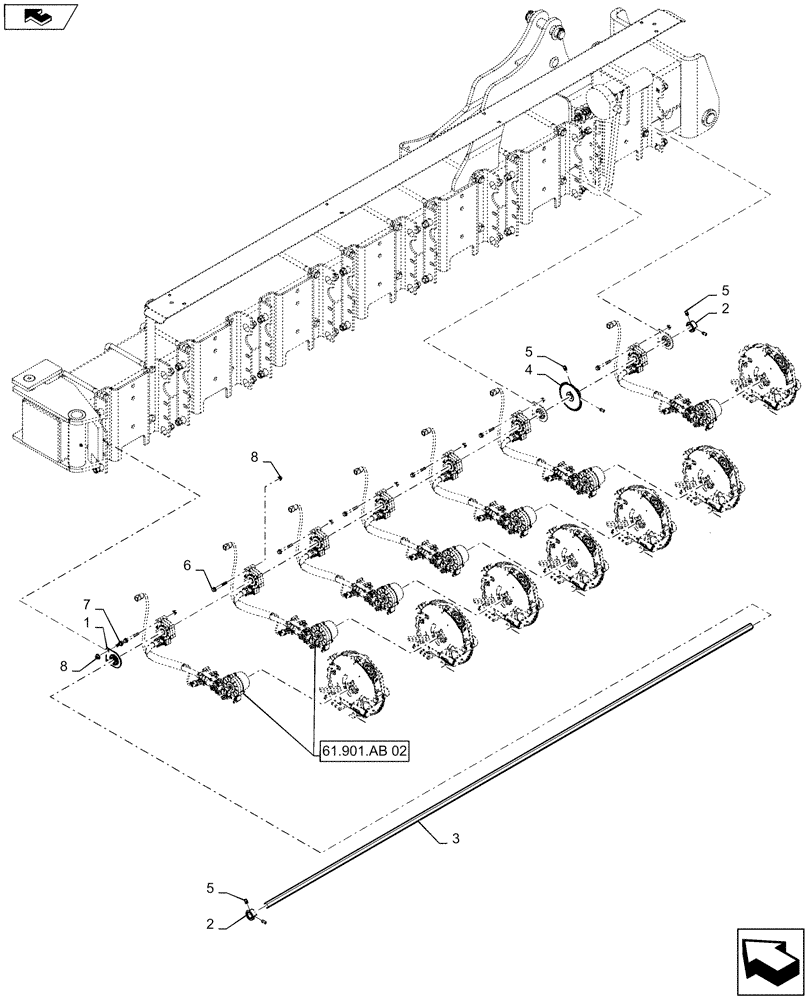

Запчасти Case IH 1245 (61.901.AF[08]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 30" SPLT ROW 16/31 (61) - METERING SYSTEM

1

102724A2

BALL BEARING,22.6mm ID

.875" Hex Bore

1шт.

2

22224

COLLAR

Lock Stop

1шт.

3

84540562

SHAFT

Trans Input 7/8 Hex For Sec 1 & Sec 4

1шт.

3

84540587

SHAFT

Trans Input 7/8 Hex For Sec 2

1шт.

3

1254282C1

BAR

Trans Input 7/8 Hex For Sec 3

1шт.

4

353037A1

SPROCKET

34 Tooth

1шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

1шт.

6

84553071

FLANGE BOLT

3/8 X 3"

1шт.

7

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.
