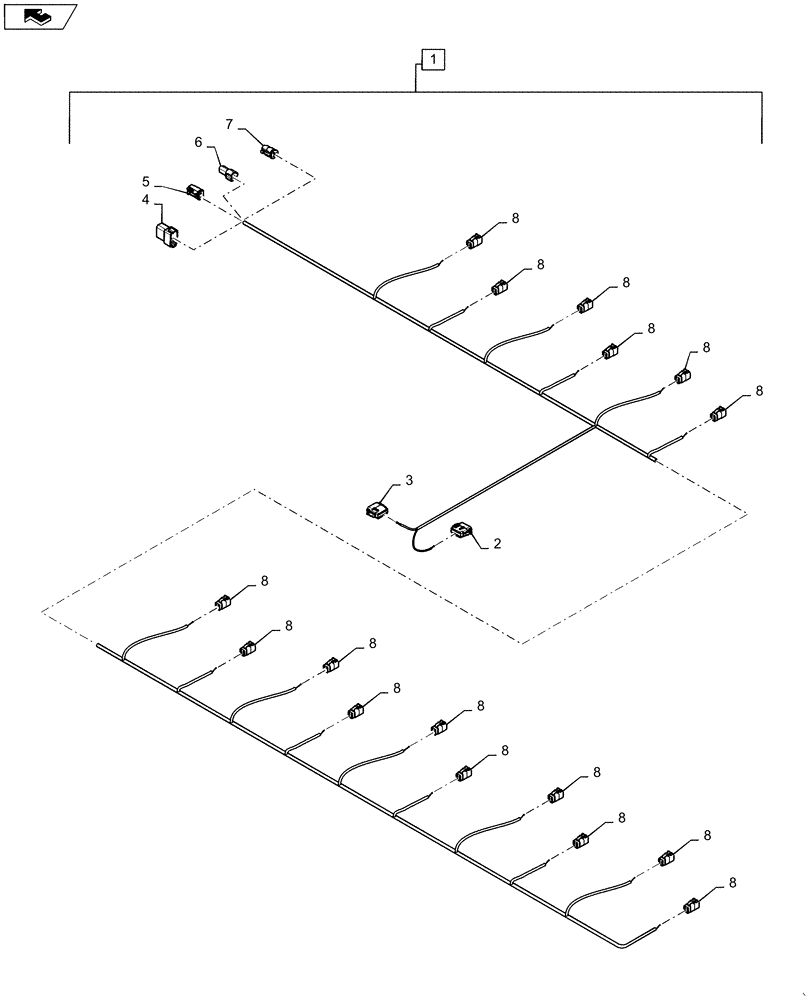

Запчасти Case IH 1245 (55.516.AD[05]) - SEED SENSOR WIRE HARNESS 30" SPLIT ROW 16/31 (55) - ELECTRICAL SYSTEMS

1

84539987

WIRE HARNESS

Seed Sensor 30" Split Row 16/31 Incl 2 - 8

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Module A

1шт.

3

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Seed Module B

1шт.

4

87695724

ELEC CONNECTOR,Male, 12 Pole

Clutches

1шт.

5

87711966

PLUG

Seed Module Power

1шт.

6

87695723

ELEC CONNECTOR,Male , 3 Pole

Can 2 In

1шт.

7

87695580

ELEC CONNECTOR,Female, 3 Pole

Can 2 Out

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 1

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 2

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 3

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 4

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 5

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 6

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 7

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 8

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 9

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 10

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 11

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 12

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 13

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 14

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 15

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 16

1шт.
