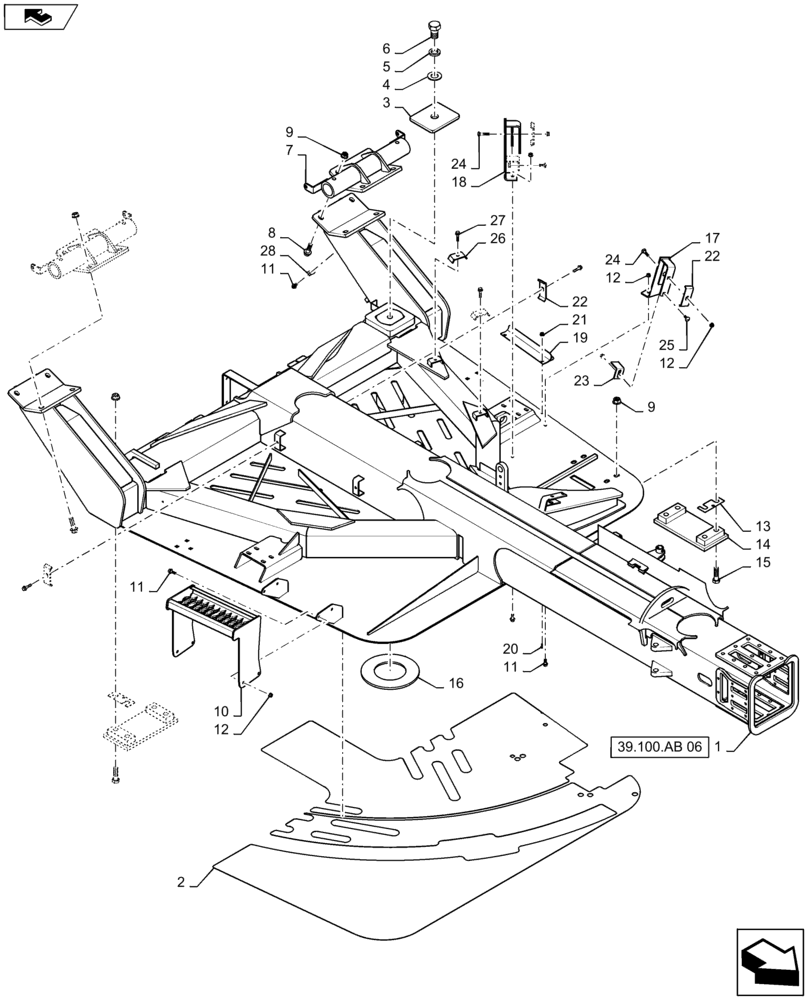

Запчасти Case IH 1245 (39.100.AB[05]) - CARRIER FRAME FOR 30" SPLIT ROW 16/31 (39) - FRAMES AND BALLASTING

1

87523797

FRAME

Base 16/31

1шт.

2

87401429

SHEET

Non-Skid

2шт.

3

427853A1

PLATE

Retaining Cap

1шт.

4

87613292

WASHER

1.3125 X 2.5 X 0.15

1шт.

5

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

6

87023127

BOLT,Hex, 1 1/4" - 7 x 2", Gr 8, Full Thd

1шт.

7

427855A1

MOUNTING PARTS

Wheel Spindle

2шт.

8

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

9

84490435

FLANGE NUT

16шт.

10

87460241

STEP

Main Frame

1шт.

11

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

12

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

13

427859A1

SHIM

Stop Block

4шт.

14

427861A1

BLOCK

Stop

2шт.

15

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

16

441100A1

WASHER,144.3mm ID x 264mm OD x 9.53mm Thk

Carrier Rotating Bar

1шт.

17

87500067

BRACKET

Mount Hose

1шт.

18

87445084

HANGER

Hose Mount

1шт.

19

87500061

GUARD

Hose Protector

1шт.

20

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

22

87500057

HOSE CLAMP

9шт.

23

87500022

BRACKET

Hose Retainer

4шт.

24

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

4шт.

25

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

26

427781A1

HOSE CLAMP

2 Hose

4шт.

27

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

9шт.

28

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
