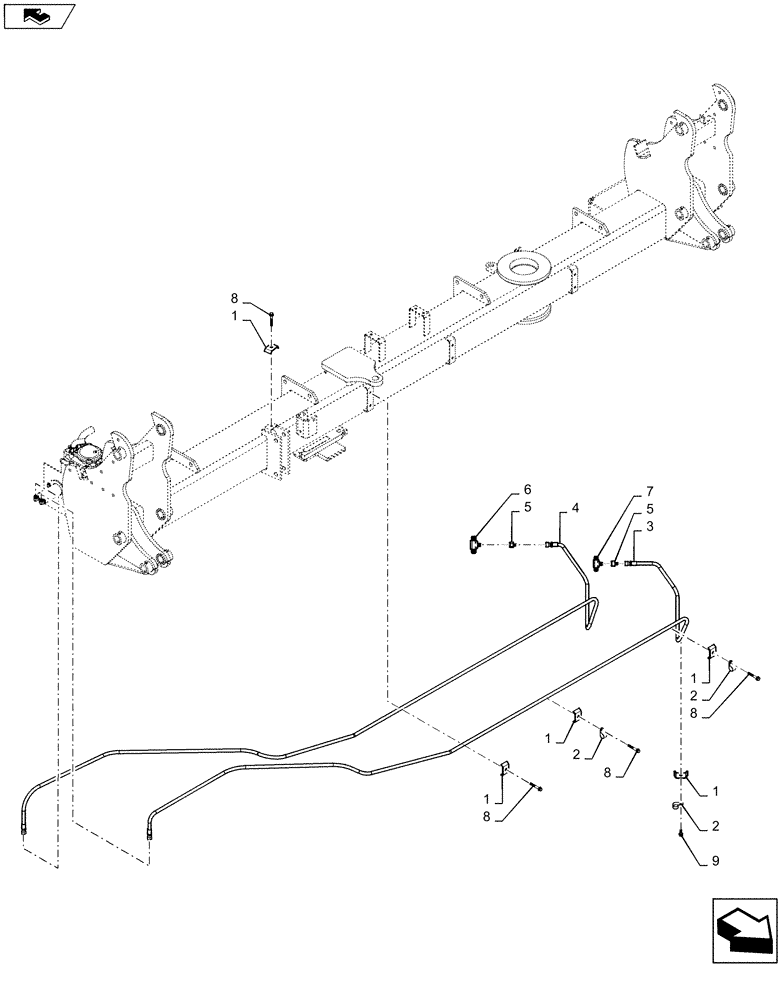

Запчасти Case IH 1245 (35.747.AE[01]) - LIQUID FERTILIZER HYDRAULICS FOR 24/20, 16/30 AND 30" SPLIT ROW 16/31 (35) - HYDRAULIC SYSTEMS

1

427779A1

CLAMP

2 Hose

5шт.

2

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

3

47452788

HOSE

Supply Line 3/8" X 170"

1шт.

4

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

Return 3/8" X 175"

1шт.

5

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

6

87644290

HYD CONNECTOR

5/8 X 5/8 X 1/2"

1шт.

7

266315

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

8

84522369

BOLT

3/8-16 X 2.5"

4шт.

9

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
