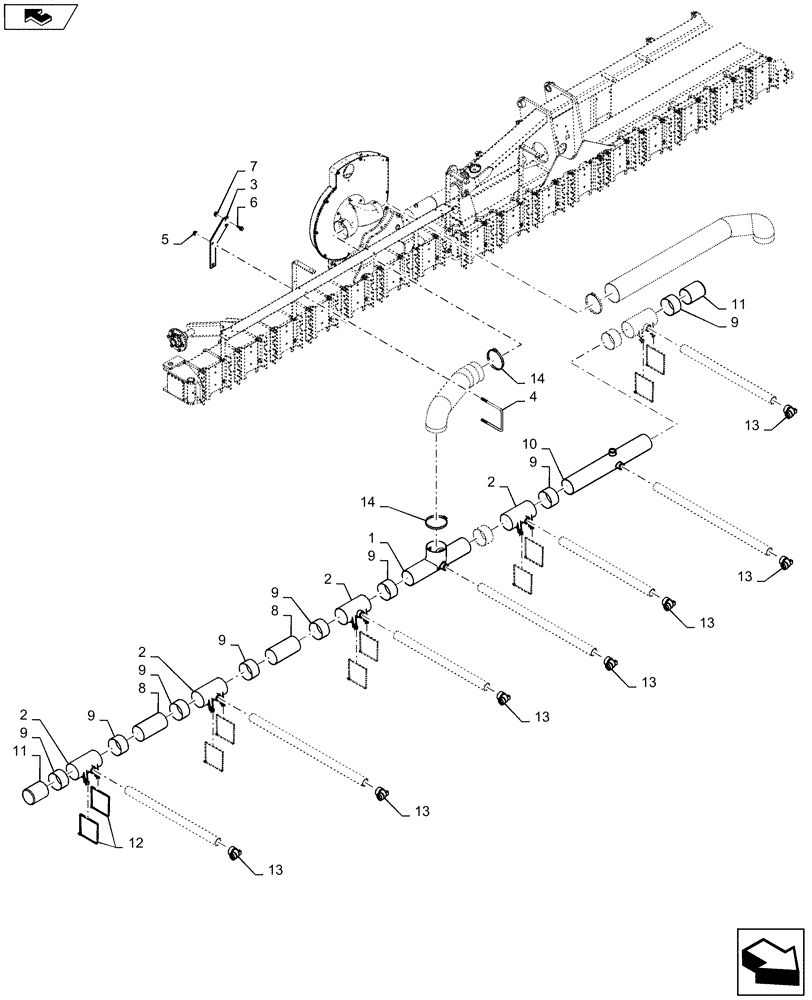

Запчасти Case IH 1245 (79.103.AA[07]) - VACUUM CONECTORS OUTER FOR 30" SPLIT ROW 16/31 (79) - PLANTING

1

86988117

TEE

Manifold Four Way

2шт.

2

446603A2

TEE

Manifold

10шт.

3

87424272

BRACKET

Four Way Tee Mounting

2шт.

4

1250813C1

U-BOLT

5/8-11 7 X 7

2шт.

5

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

8

86988928

TUBE,116.88 mm ID x 125 mm OD x 250 mm L

4шт.

9

447175A3

SLEEVE

Band

20шт.

10

87417935

TEE

Manifold Long

2шт.

11

87417934

PLUG

Manifold

4шт.

12

112620A1

CABLE TIE

34"

20шт.

13

84416530

90 ELBOW

14шт.

14

84541279

CLAMP,6.12" - 7"

6шт.
