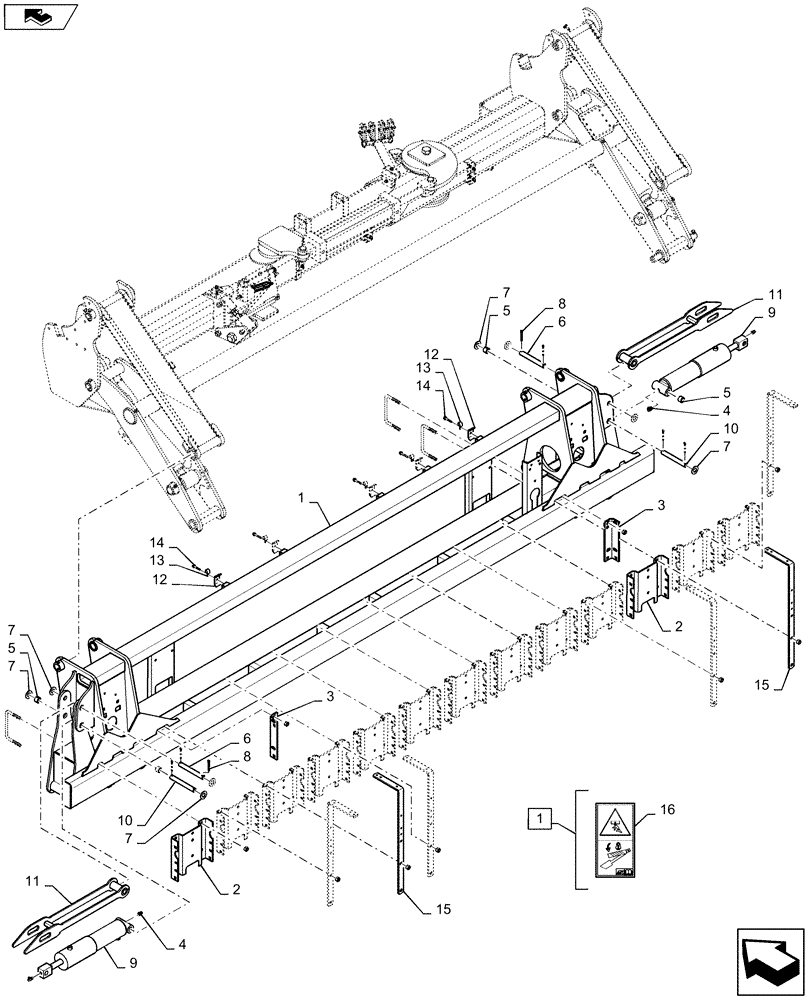

Запчасти Case IH 1245 (39.902.AA[02]) - CENTER SUB BAR FOR 30" SPLIT ROW 12/23 (39) - FRAMES AND BALLASTING

1

84547030

FRAME

Center 7 x 7 Painted Incl Decals Incl 16

1шт.

2

141728C5

BRACKET

Head 3 X 7

13шт.

3

87462142

ANGLE

Head Bracket

2шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

64601C1

BUSHING

Tension

4шт.

6

441198A1

PIN

Cylinder Anchor

2шт.

7

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

8

88182

COTTER PIN,1/4" OD x 2" L

8шт.

9

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

2шт.

9

87439451R

REMAN-HYD CYLINDER

1245 PLANTER 30" SPLIT ROW 12/23 (7/13-)

2шт.

9

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

10

87460741

PIN

Wing Cylinder Anchor

2шт.

11

87456282

LATCH

Storage

2шт.

12

427781A1

HOSE CLAMP

2 Hose

11шт.

13

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

9шт.

14

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

9шт.

15

427745A2

BAR

Vacuum Support

6шт.

16

47433201

DECAL

Crush Hazard

2шт.
