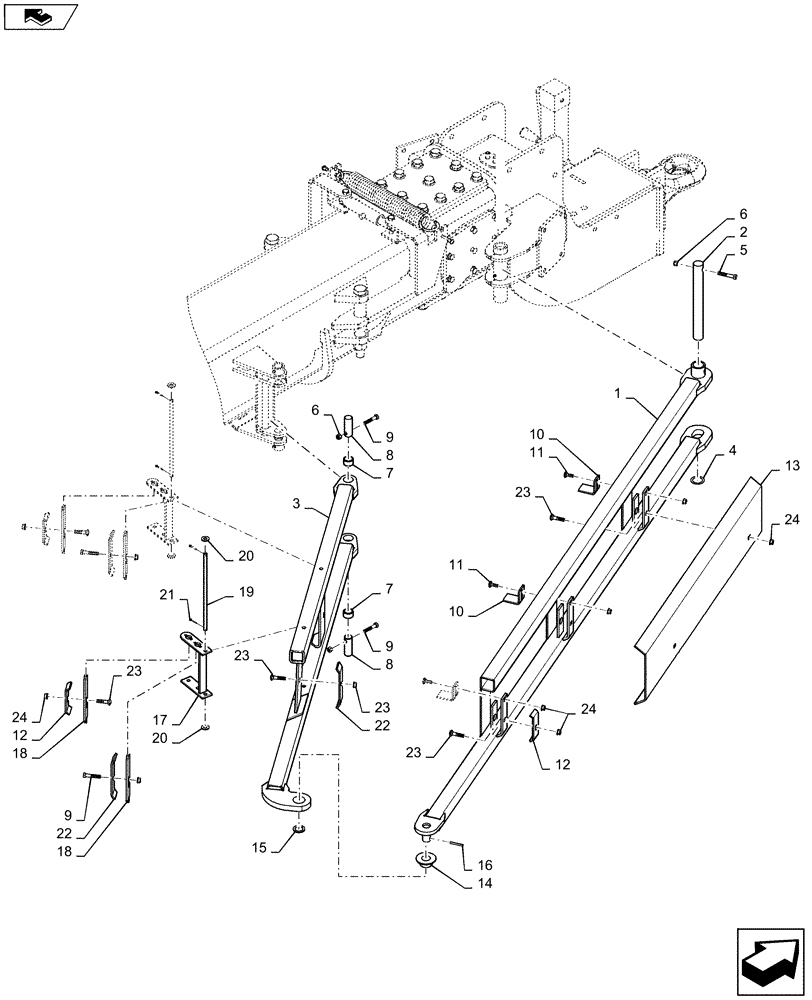

Запчасти Case IH 1245 (39.100.BD[05]) - HOSE CARRIER FOR 30" SPLIT ROW 12/23 AND 12/30 (39) - FRAMES AND BALLASTING

1

87461062

CARRIER

Link Hose 30 Foot Front

1шт.

2

87437131

PIN

Outer Link Pivot

1шт.

3

87461076

CARRIER

Link Hose 30 Foot Rear

1шт.

4

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

1шт.

5

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

6

88902

NUT,3/8"-16

3шт.

7

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75L"

2шт.

8

87439957

PIN

Hose Carrier Pivot

2шт.

9

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

10

87500022

BRACKET

Hose Retainer

3шт.

11

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

12

87500057

HOSE CLAMP

3шт.

13

87500059

TRAY

Hose Shield

1шт.

14

87439935

BUSHING

Hose Carrier Linkage

1шт.

15

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

16

86624099

PIN,1/4" x 1 3/4", Coiled

1шт.

17

87444593

BRACKET

Hose Parallel Link

2шт.

18

87444599

PLATE

Hose Mount Piviot

4шт.

19

87445112

PIN

.375 X 11"

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

21

80755

COTTER PIN,1/8" OD x 1" L

4шт.

22

87500063

HOSE CLAMP

Hyd

4шт.

23

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

7шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.
