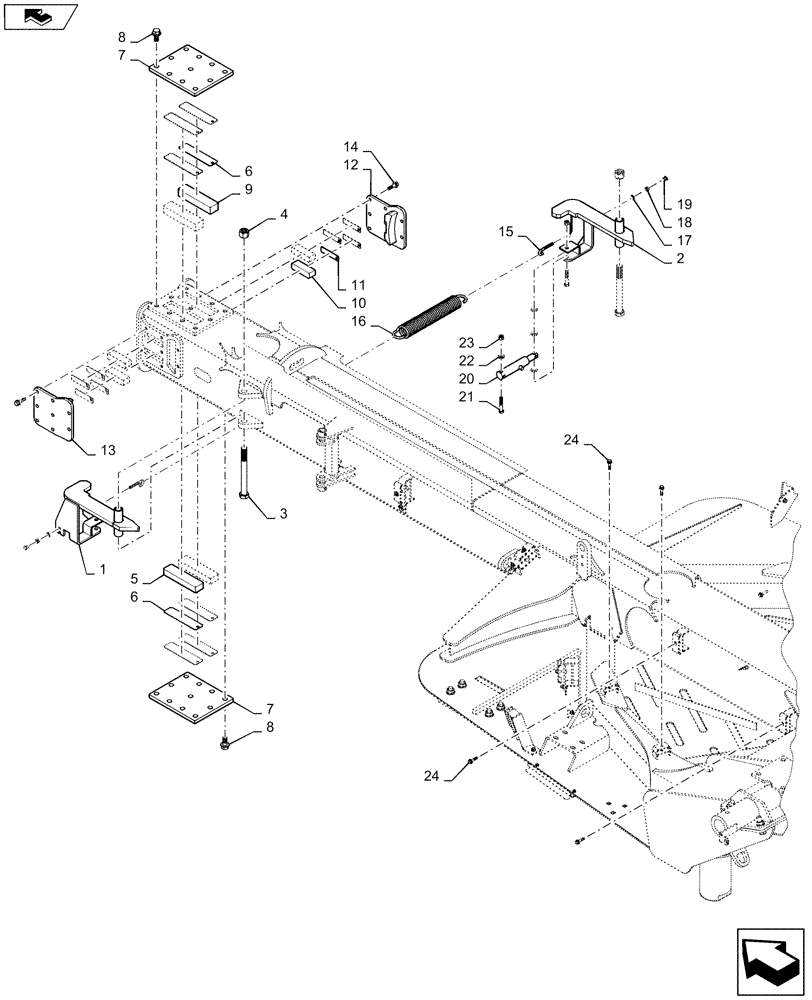

Запчасти Case IH 1245 (39.100.AB[04]) - CARRIER FRAME RECIEVER FOR 30" SPLIT ROW 12/23 (39) - FRAMES AND BALLASTING

1

87544820

HOOK

Hitch Lock Right Painted

1шт.

2

87544823

HOOK

Hitch Lock Left Painted

1шт.

3

86622974

BOLT

2шт.

4

86755

NUT,1"-8, GB

2шт.

5

87502401

WEAR PAD

12 X 12 Top

2шт.

6

87506176

SHIM

12 X 12 Top/ Bottom

8шт.

7

87462898

COVER

12 X 12 Top

2шт.

8

84539442

FLANGE BOLT

3/4-10 X 1.5 Grade 8

22шт.

9

87461092

WEAR PAD

12 X 12 Bottom

2шт.

10

87461072

WEAR PAD

5.8 X 1.8 X 1.38

4шт.

11

87506157

SHIM

Hitch Side Painted

8шт.

12

87460985

PLATE

12 X 12 Left Side Cover

1шт.

13

87462887

COVER

12 X 12 Side Cover

1шт.

14

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

16шт.

15

398207A1

SPECIAL BOLT

J- Spring

2шт.

16

87506152

SPRING

9.5 X 63.5 X 434 mm

1шт.

17

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

18

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

19

86632697

CAP

Plug .38

2шт.

20

86991777

HYDRAULIC CYLINDER

Ram

1шт.

21

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

22

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

23

9636698

NUT,1/2"-13, GB

2шт.

24

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.
