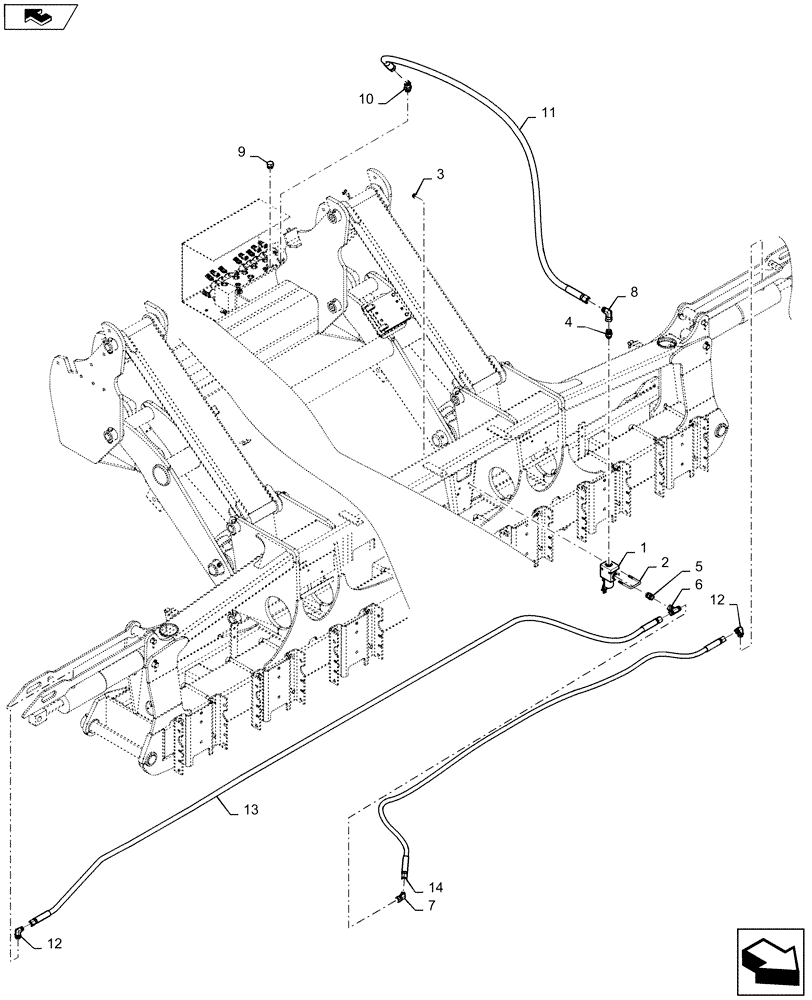

Запчасти Case IH 1245 (35.746.AC[07]) - ROW UNIT NO MARKERS HYDRAULICS FOR 30" SPLIT ROW 12/23 (35) - HYDRAULIC SYSTEMS

1

87582248

VALVE

Bi-Directional Solenoid

1шт.

2

9840

U-BOLT

.313 X 2.063W X 2.75D

1шт.

3

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

4

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

6

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

7

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

8

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

9

86512512

PLUG,7/8" - 14 ORB

1шт.

10

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

1шт.

11

47481020

HOSE

16mm ID X 2380mm

1шт.

12

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

13

47409383

HOSE

12.5mm ID X 4320mm

1шт.

14

47409363

HOSE

12.5mm ID X 1395mm

1шт.
