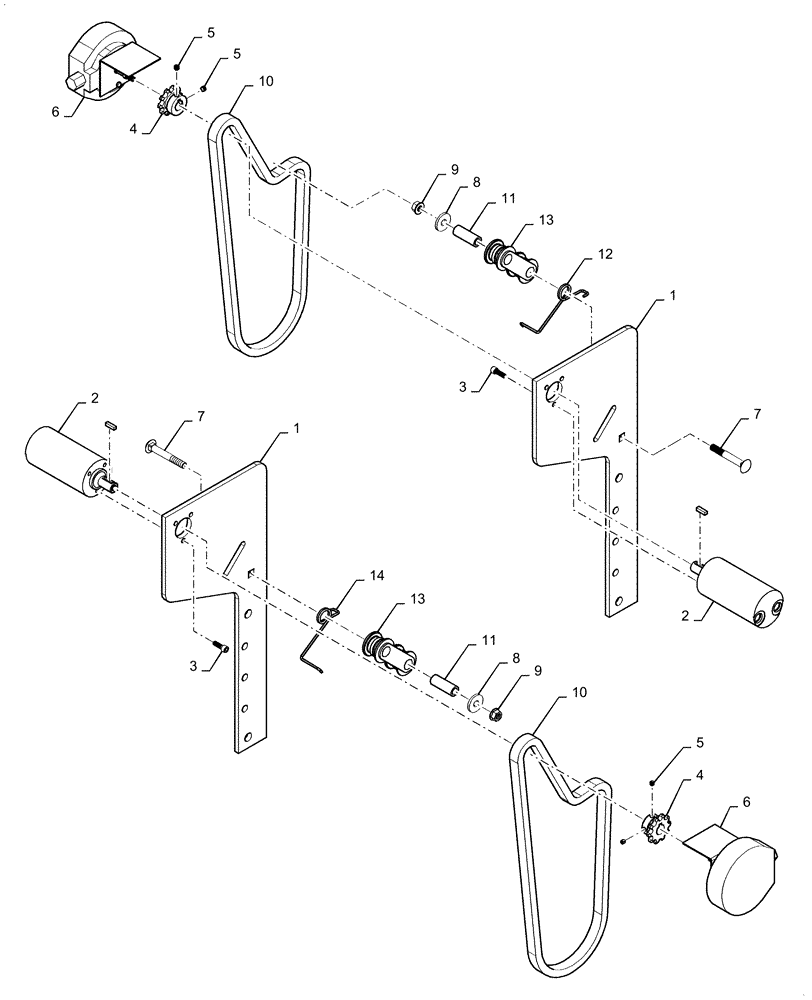

Запчасти Case IH 1245 (35.745.AA[16]) - HYDRAULIC DRIVE METER 12/23 (35) - HYDRAULIC SYSTEMS

1

87419189

BRACKET

Seed Drive Motor , Start Serial: YES044206

4шт.

2

293288A1

MOTOR

Meter Drive , Start Serial: YES044206

4шт.

3

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

, Start Serial: YES044206

12шт.

4

84551195

SPROCKET

#40 10 Tooth , Start Serial: YES044206

4шт.

5

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

, Start Serial: YES044206

8шт.

6

296164A2

SENSOR

Application Rate , Start Serial: YES044206

4шт.

7

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

, Start Serial: YES044206

4шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

, Start Serial: YES044206

4шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Start Serial: YES044206

4шт.

10

84387534

CHAIN

Seed Drive , Start Serial: YES044206

4шт.

11

47579093

SLEEVE

10.3 Id 15.88 Od , Start Serial: YES044206

4шт.

12

47557402

SPRING

Chain Tensioner Right , Start Serial: YES044206

2шт.

13

87458905

ROLLER

Chain Tensioner , Start Serial: YES044206

4шт.

14

47557405

SPRING

Chain Tensioner Left , Start Serial: YES044206

2шт.
