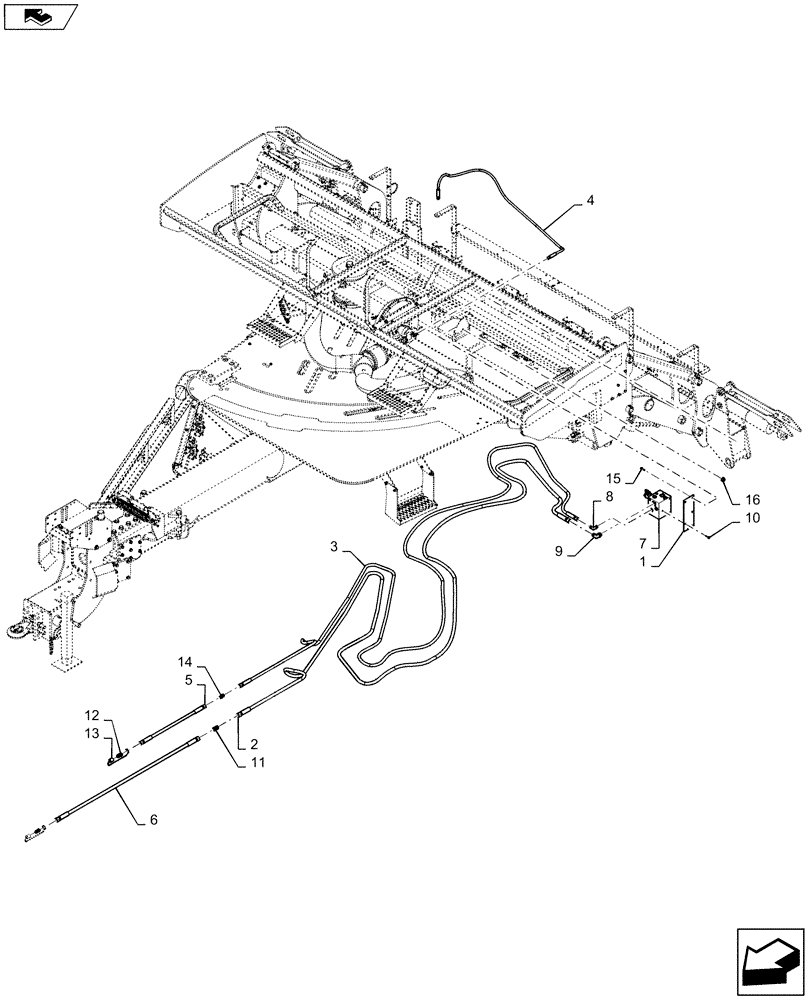

Запчасти Case IH 1245 (35.745.AA[15]) - BULK FILL HYDRAULICS FOR 30" SPLIT ROW 12/23 , 12/30 (35) - HYDRAULIC SYSTEMS

1

86988939

BRACKET

Valve Bulk Fill Mounting

1шт.

2

87454628

HYDRAULIC HOSE

19 ID X 11490mm

1шт.

3

47479055

HOSE

16 ID X 12300mm

1шт.

4

813006C2

HYDRAULIC HOSE

10 ID X 2160mm

1шт.

5

47483300

HOSE

16 ID X 680mm

1шт.

6

47483306

HOSE

19 ID X 1580 mm

1шт.

7

84538083

VALVE

Block Bulk Fill

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

10

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

11

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

12

1272399C2

QUICK MALE COUPLING

2шт.

13

333719A1

CAP

Quick Coupler Yellow

2шт.

14

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

15

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
