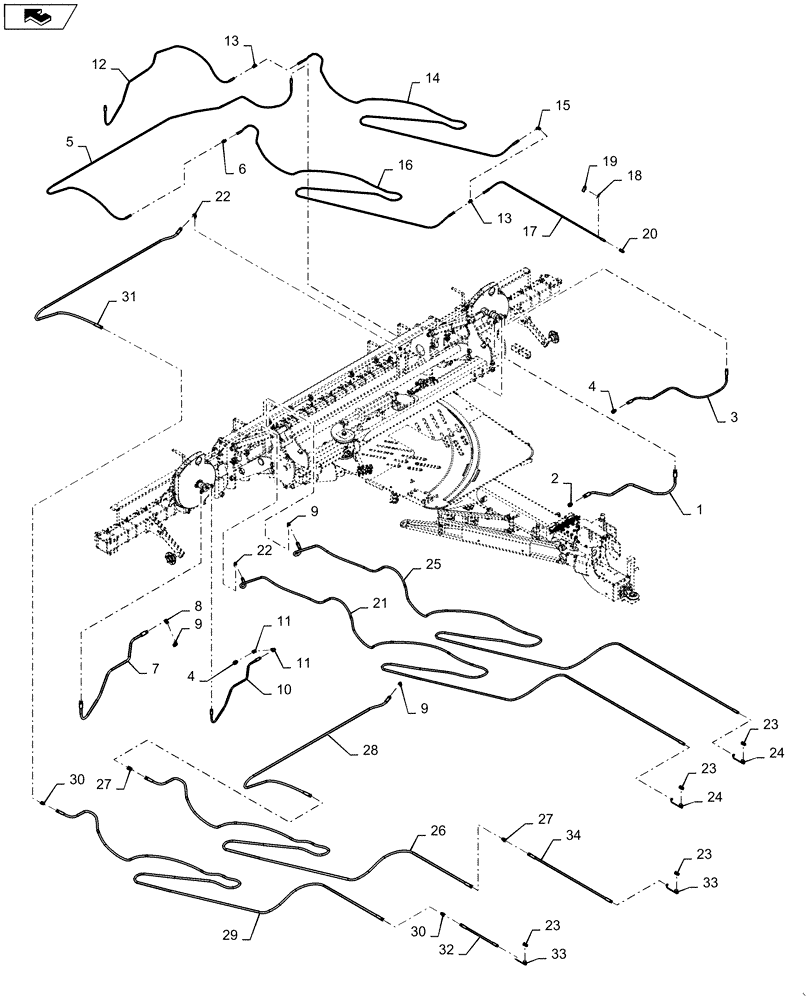

Запчасти Case IH 1245 (35.745.AA[08]) - DIRECT DRIVE HYDRAULIC DISTRIBUTION FOR 30" SPLIT ROW 12/23 (35) - HYDRAULIC SYSTEMS

1

87454634

HYDRAULIC HOSE

19 ID X 1780mm

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

3

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

5

133933C2

HYDRAULIC HOSE

10 ID X 6605mm

1шт.

6

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

301277A1

HYDRAULIC HOSE,19.05mm ID x 2540mm L

19 ID X 2285mm

1шт.

8

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

9

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

10

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

11

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

12

1284369C1

HYDRAULIC HOSE

10 ID X 3300mm

1шт.

13

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

14

1284299C1

HYDRAULIC HOSE

10 ID X 8890mm Bottom

1шт.

15

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

16

1284299C1

HYDRAULIC HOSE

10 ID X 8890mm Top

1шт.

17

47456337

HOSE

10 ID X 2415mm

1шт.

18

6033

CABLE TIE,6"

1шт.

19

47432848

DECAL

Tag Case Drain

1шт.

20

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.

21

47484818

HOSE

16 ID X 13335mm

1шт.

22

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

23

1272399C2

QUICK MALE COUPLING

4шт.

24

333722A1

CAP

Quick Coupler Green

2шт.

25

47484829

HOSE

19 ID X 13210mm

1шт.

26

87454626

HYDRAULIC HOSE

19 ID X 9525mm

1шт.

27

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

28

87454636

HYDRAULIC HOSE

19 ID X 4775mm

1шт.

29

47484841

HOSE

16 ID X 10330mm

1шт.

30

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

31

47484845

HOSE

16 ID X 4825mm

1шт.

32

47483300

HOSE

16 ID X 680mm

1шт.

33

333717A1

CAP

Coupler Blue

2шт.

34

47483306

HOSE

19 ID X 1580mm

1шт.
