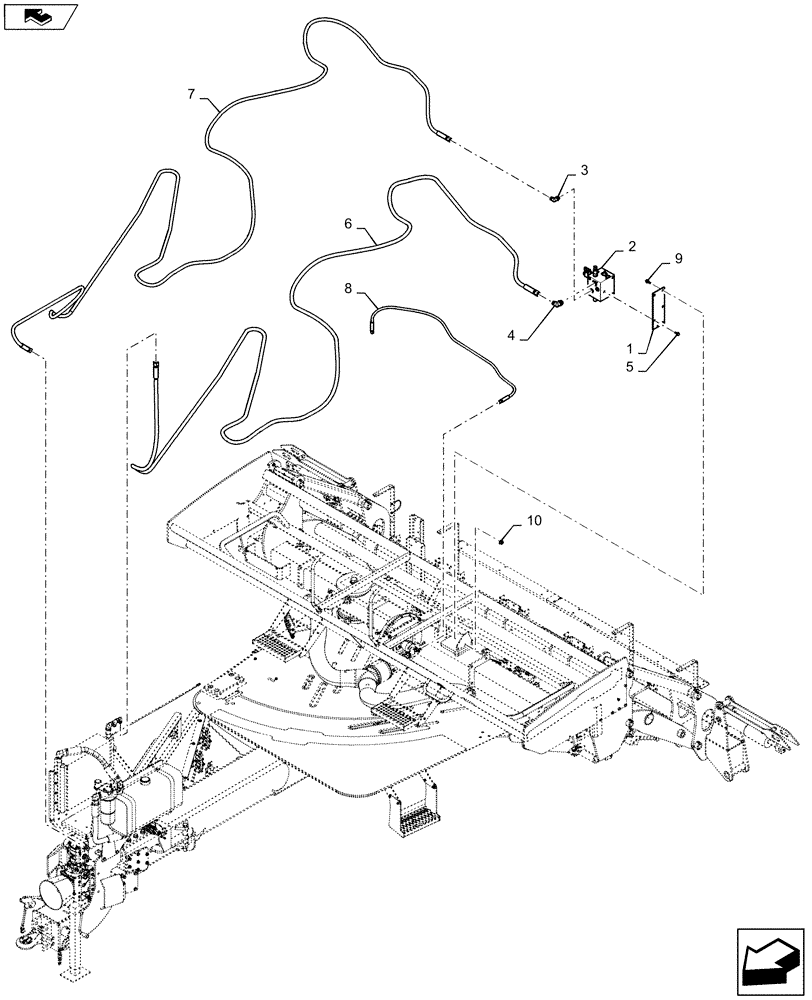

Запчасти Case IH 1245 (35.200.AA[18]) - 36 GPM PTO HYDRAULICS WITH BULK FILL FOR 30" SPLIT ROW 12/23, 12/30 (35) - HYDRAULIC SYSTEMS

1

86988939

BRACKET

Bulk Fill Valve Mounting

1шт.

2

84538085

VALVE

Bulk Fill PTO

1шт.

3

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

5

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

6

87454628

HYDRAULIC HOSE

19 ID X 11490mm

1шт.

7

47479055

HOSE

16 ID X 12300mm

1шт.

8

813006C2

HYDRAULIC HOSE

10 ID X 2160mm

1шт.

9

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
