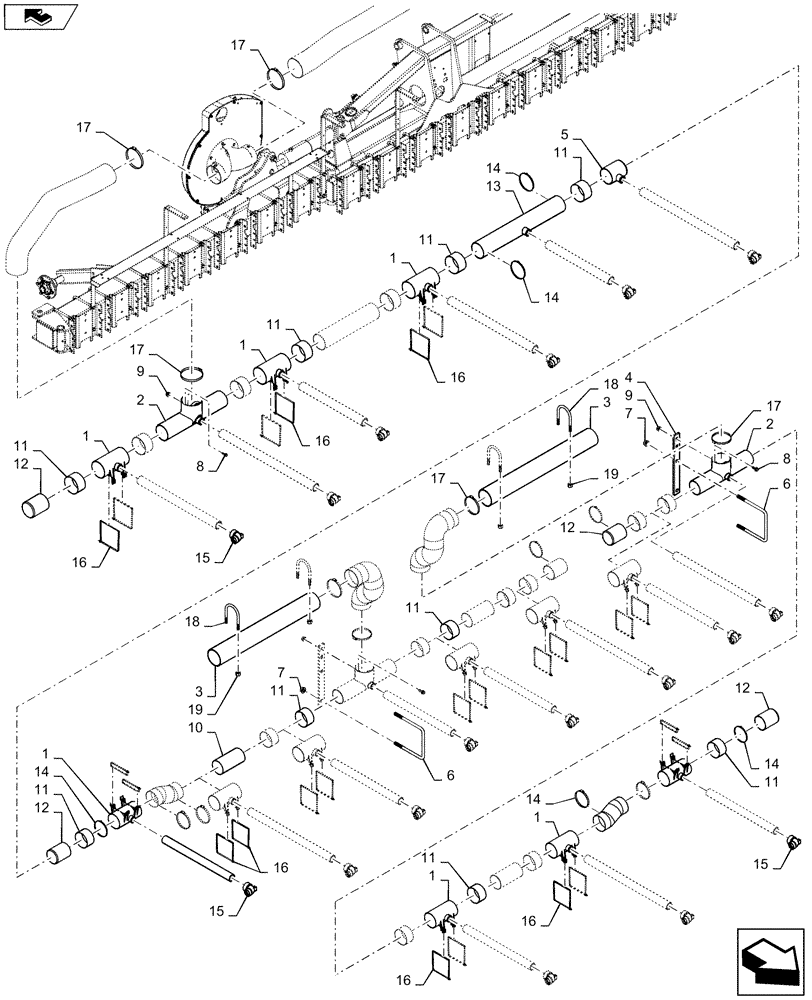

Запчасти Case IH 1245 (79.103.AA[04]) - VACUUM CONNECTORS FOR 30" SPLIT ROW 12/23 (79) - PLANTING

1

446603A2

TEE

Vacuum Manifold

15шт.

2

86988117

TEE

Four Way Vertical

4шт.

3

87502313

TUBE,6 mm OD x 48 mm L

2шт.

4

86991575

BRACKET

4шт.

5

446492A1

CAP

2" Tee

2шт.

6

1250813C1

U-BOLT

5/8-11

4шт.

7

86521608

FLANGE NUT,Flg, 5/8"-11, G5

8шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

10

86988928

TUBE,116.88 mm ID x 125 mm OD x 250 mm L

Manifold

3шт.

11

447175A3

SLEEVE

Air Manifold Seal

26шт.

12

87417934

PLUG

Vacuum Manifold

6шт.

13

87417935

TEE

Vacuum Manifold Long

6шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

8шт.

15

84416530

90 ELBOW

50 mm

23шт.

16

112620A1

CABLE TIE

34"

31шт.

17

84541279

CLAMP,6.12" - 7"

12шт.

18

87427116

U-BOLT

4шт.

19

86625061

NUT,1/4"-20, GB

8шт.
