Запчасти Case IH 1245 (75.200.36) - PNEUMATIC DOWN PRESSURE - 14" LINKAGE (75) - SOIL PREPARATION

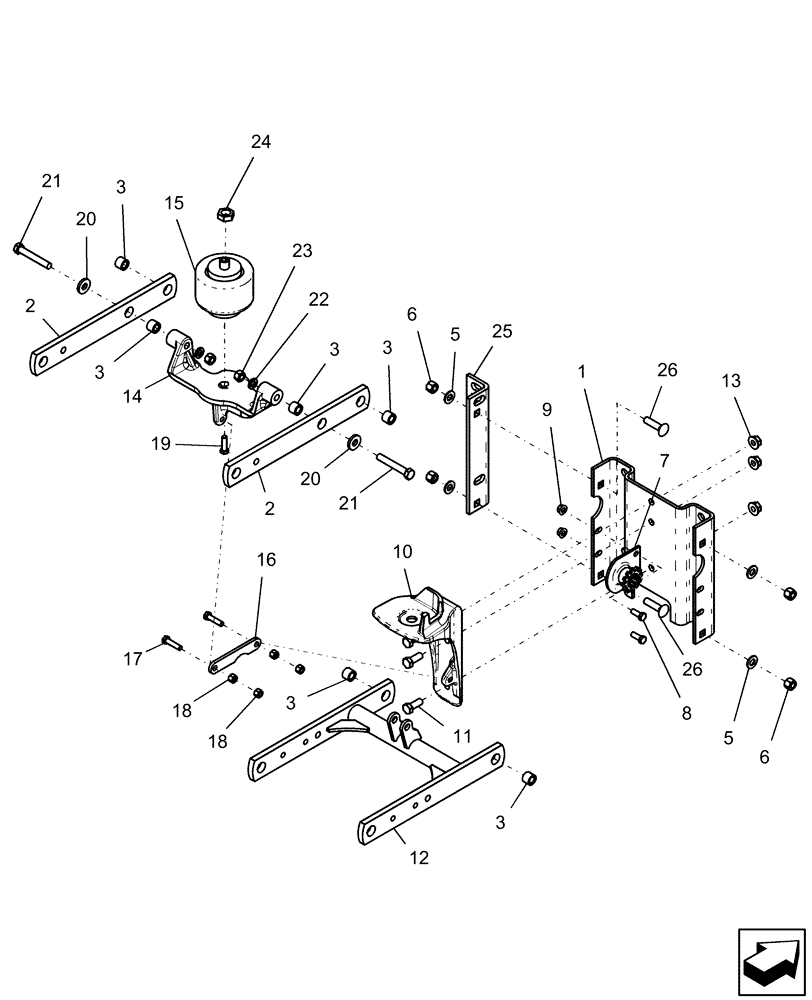

Схема запчастей Case IH 1245 - (75.200.36) - PNEUMATIC DOWN PRESSURE - 14" LINKAGE (75) - SOIL PREPARATION
17
20
19
11
24
13
9
2
5
22
12
10
5
15
20
14
6
23
21
7
26
2
3
3
16
21
18
1
18
3
26
8
3
3
25
6
3

Артикул

Название

Примечание

Количество

1

141728C5

BRACKET

channel head

1шт.

2

87739254

BAR

14" upper

2шт.

3

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

6шт.

4

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

10

87739252

BRACKET

upper air spring

1шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

12

87740251

LINKAGE

14" lower

1шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

3шт.

14

87739251

BRACKET

lower air spring

1шт.

15

87737172

SPRING

pneumatic 4.6" dia

1шт.

15

84250155

TEE,1/4" AIR x 1/4" AIR x 1/8" - 27 NPT

Branch, Male

1шт.

16

87739253

BRACKET

pneumatic link

1шт.

17

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

87039402

NUT,3/8"-16, GB

4шт.

19

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

20

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

21

280820

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

9803187

NUT,1/2"-13, G8

2шт.

24

87313

JAM NUT,Jam, 3/4"-16, G2

1шт.

25

87462142

ANGLE

row unit mounting

1шт.

26

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

Выбрано товаров: 27
