(61.901.AF[06]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 24/20

Запчасти Case IH 1245 (61.901.AF[06]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 24/20 (61) - METERING SYSTEM

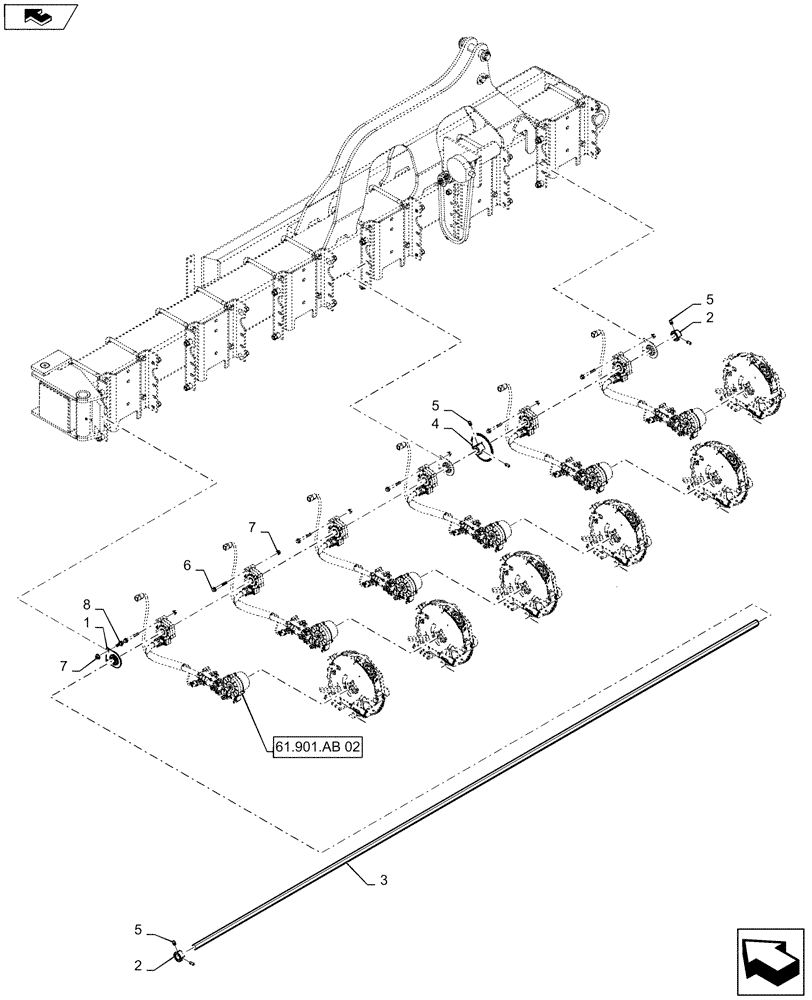

Схема запчастей Case IH 1245 - (61.901.AF[06]) - METER DRIVE SHAFT WITH CABLE DRIVE FOR 24/20 (61) - METERING SYSTEM
61.901.ab 02
3
6
home
7
5
2
5
4
1
7
2
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102724A2

BALL BEARING,22.6mm ID

.875" Hex Bore

1шт.

2

22224

COLLAR

Bearing Lock

1шт.

3

1254282C1

BAR

Trans Input 7/8 Hex

1шт.

4

353037A1

SPROCKET

34 Tooth

1шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

1шт.

6

84553071

FLANGE BOLT

3/8 X 3"

1шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

8

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

Выбрано товаров: 8
