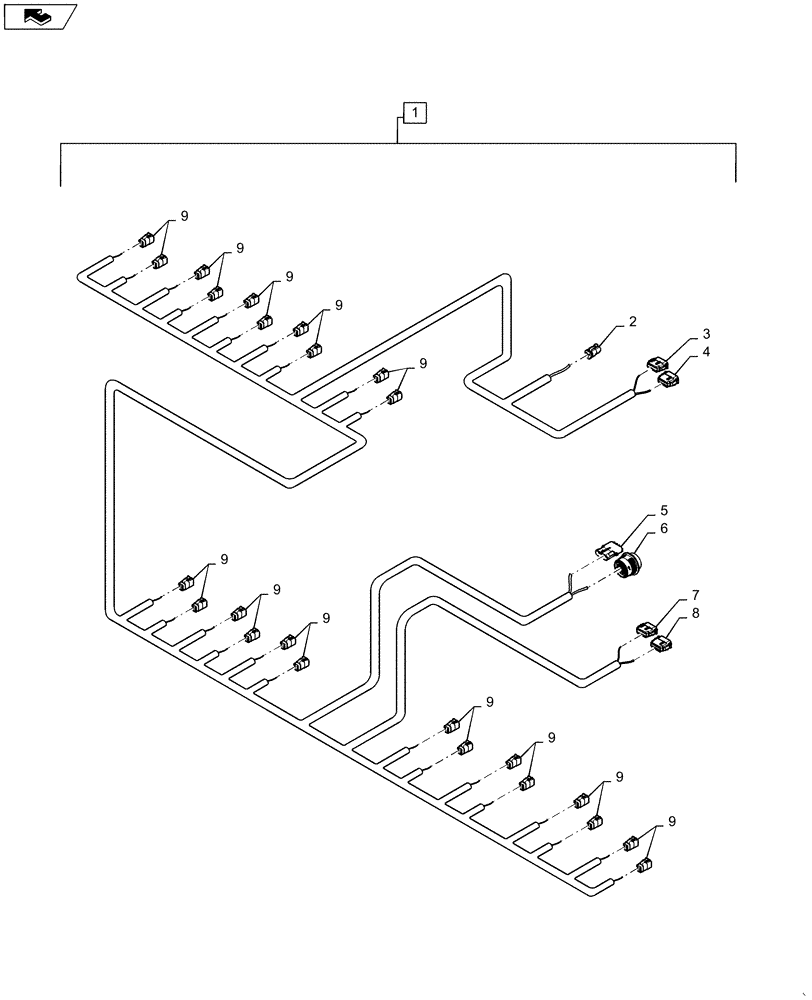

Запчасти Case IH 1245 (55.516.AD[03]) - SEED SENSOR WIRE HARNESS FOR 24/20 (55) - ELECTRICAL SYSTEMS

1

84539989

WIRE HARNESS

Seed Sensor Harness For 24/20 Incl 2 - 9

1шт.

2

84074635

CONTACT HOUSING,Female, 3 Pole

Can2 Term

1шт.

3

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Modual A

1шт.

4

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Seed Modual B

1шт.

5

87692802

ELEC CONNECTOR

Seed Sensor Bus

1шт.

6

87696085

ELEC CONNECTOR

47 Way Row Clutches

1шт.

7

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Modual A

1шт.

8

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Seed Modual B

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 1

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 2

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 3

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 4

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 5

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 6

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 7

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 8

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 9

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 10

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 11

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 12

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 13

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 14

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 15

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 16

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 17

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 18

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 19

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 20

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 21

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 22

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 23

1шт.

9

87700107

ELEC CONNECTOR

Clutch And Seed Row 24

1шт.
