(44.530.AC[01]) - MAIN CARRIER FOR 24/20, 30" SPLIT ROW 12/23 AND 16/31

Запчасти Case IH 1245 (44.530.AC[01]) - MAIN CARRIER FOR 24/20, 30" SPLIT ROW 12/23 AND 16/31 (44) - WHEELS

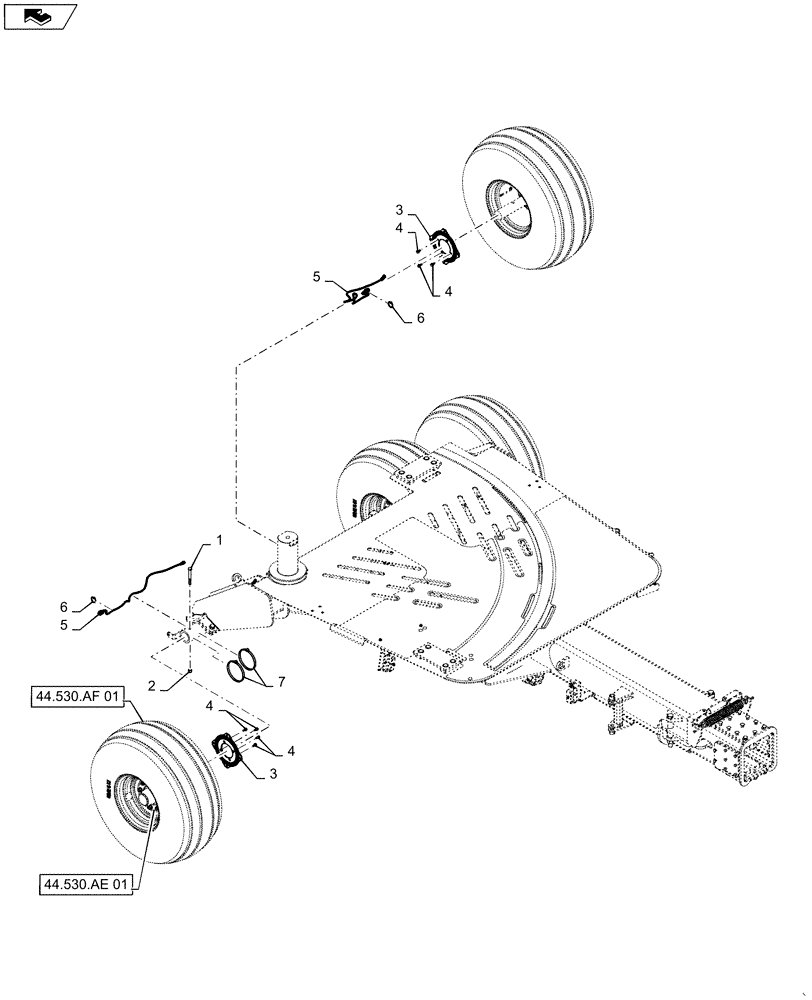

Схема запчастей Case IH 1245 - (44.530.AC[01]) - MAIN CARRIER FOR 24/20, 30" SPLIT ROW 12/23 AND 16/31 (44) - WHEELS
4
4
6
5
6
3
7
4
5
4
3
44.530.af 01
44.530.ae 01
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

2

19670

NUT,5/8"-11, GB

4шт.

3

87419220

SPROCKET

50 Tooth

2шт.

4

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

5

324049A1

SENSOR

Hall Efect Zero Speed

2шт.

6

87502038

CABLE TIE

Large

2шт.

7

87502039

CABLE TIE

Medium

4шт.

Выбрано товаров: 7
