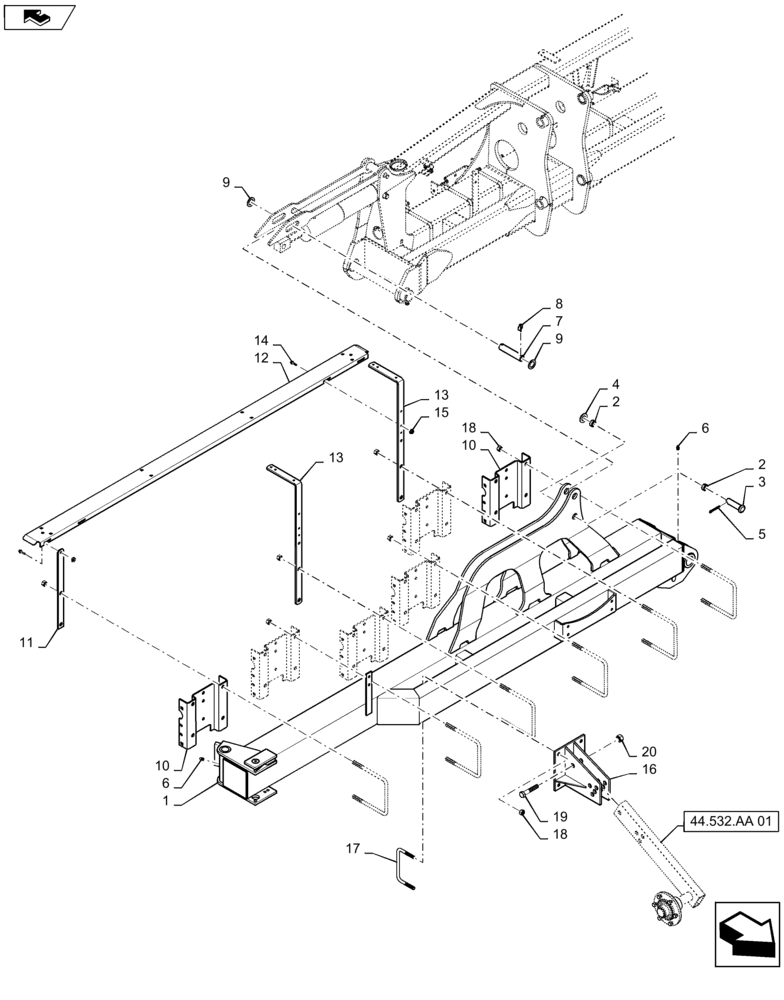

Запчасти Case IH 1245 (39.902.AA[07]) - OUTER WING RIGHT FOR 24/20 (39) - FRAMES AND BALLASTING

1

87460571

TUBE

Outer Wing Painted Red

1шт.

2

97772C1

BUSHING

Tension

2шт.

3

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

4

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

5

88182

COTTER PIN,1/4" OD x 2" L

1шт.

6

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

7

87458916

PIN

Cylinder Anchor

1шт.

8

87459046

LINCH PIN

2шт.

9

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

10

141728C5

BRACKET

Head 7 X 7

6шт.

11

87447161

BRACKET

Hose Routing

1шт.

12

87446926

BRACKET

Hose Routing

1шт.

13

427745A2

BAR

Vacuum Support

2шт.

14

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

16

427733A1

BRACKET

Wheel Mounting

1шт.

17

142583A1

U-BOLT

.625"

2шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

19

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

20

280954

NUT,3/4"-10, G5

2шт.
