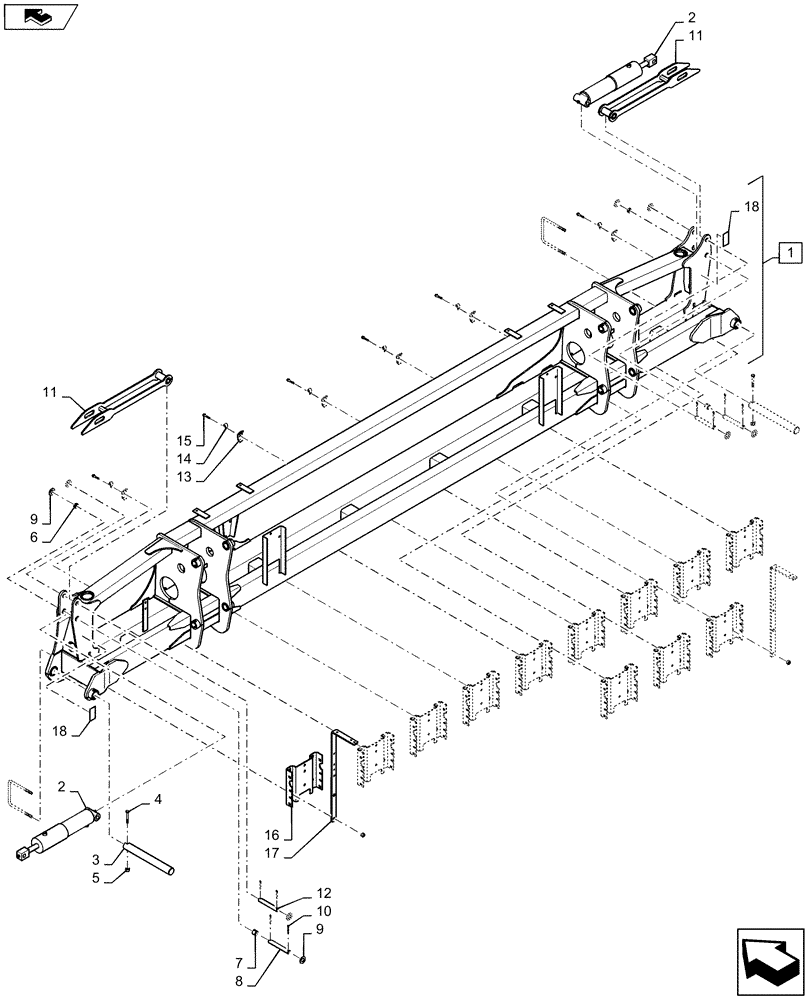

Запчасти Case IH 1245 (39.902.AA[01]) - CENTER SUB BAR FOR 24/20 (39) - FRAMES AND BALLASTING

1

47505834

CROSSBAR

Center Section Painted Incl Decal Incl 18

1шт.

2

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

2шт.

2

87439451R

REMAN-HYD CYLINDER

1245 PLANTER 24/20 (7/13-)

2шт.

2

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

3

87401673

PIN

Wing Pivot

2шт.

4

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

5

88871

NUT,1/2"-13, GC

2шт.

6

97772C1

BUSHING

Tension

2шт.

7

87459486

BUSHING

Tension

2шт.

8

87460740

PIN

Wing Cylinder Anchor

2шт.

9

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

10

88182

COTTER PIN,1/4" OD x 2" L

8шт.

11

87456282

LATCH

Storage

2шт.

12

87458906

PIN

Cylinder Anchor

2шт.

13

427781A1

HOSE CLAMP

2 Hose

6шт.

14

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

6шт.

15

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

16

141728C5

BRACKET

Head 7 X 7

12шт.

17

427745A2

BAR

Vacuum Support

2шт.

18

47433201

DECAL

Crush Hazard

2шт.
