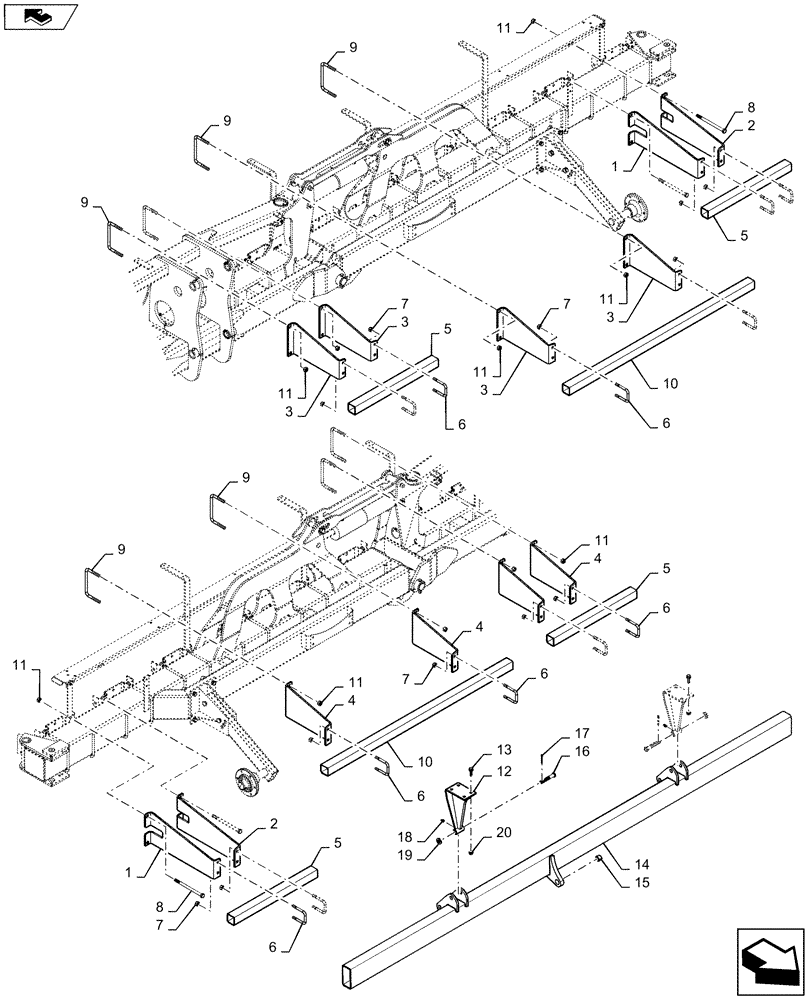

Запчасти Case IH 1245 (39.140.AF[01]) - LIQUID FERTILIZER COULTER MOUNTING FOR 24/20 (39) - FRAMES AND BALLASTING

1

427753A1

BRACKET

Left Fertilizer Opener 22"

2шт.

2

427755A1

BRACKET

Right Fertilizer Opener 22"

2шт.

3

87442415

BRACKET

Left Fertilizer Opener 7"

4шт.

4

87442417

BRACKET

Right Fertilizer Opener 7"

4шт.

5

87419373

TUBE,720 mm L

2.5 X 2.5"

4шт.

6

1344524C1

U-BOLT

1/2 X 2-1/2 X 3-1/2"

12шт.

7

280431

NUT,1/2"-13, G5

24шт.

8

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

8шт.

9

142583A1

U-BOLT

.625"

8шт.

10

258420A1

TUBE,1605 mm Length

2шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

24шт.

12

87447077

PIVOT

Fertilizer Mount

2шт.

13

47375979

FLANGE BOLT,1/2" - 13 x 1-1/2", Gr 8

1/2-13 X 1.5"

8шт.

14

87447073

FRAME

Carrier Frame

1шт.

15

64601C1

BUSHING

Tension

1шт.

16

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

17

88182

COTTER PIN,1/4" OD x 2" L

2шт.

18

87414

LUBE NIPPLE,1/4" - 28

2шт.

19

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

2шт.

20

86544265

FLANGE NUT,Flg, 1/2"-13, G8

8шт.
