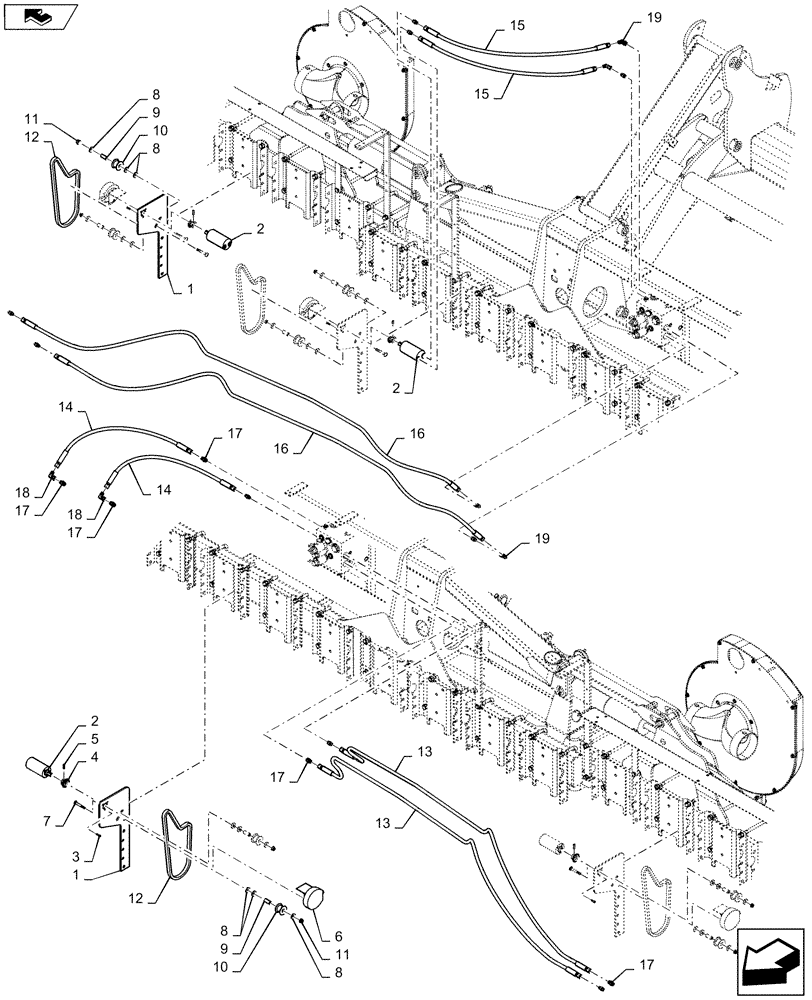

Запчасти Case IH 1245 (35.745.AA[07]) - HYDRAULIC DIRECT DRIVE METER BULK FILL FOR 24/20 (35) - HYDRAULIC SYSTEMS

1

87419189

BRACKET

Seed Drive Motor

4шт.

2

293288A1

MOTOR

Meter Drive

4шт.

2

293288A1R

REMAN-HYD MOTOR

Meter Drive

4шт.

2

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

4шт.

3

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

12шт.

4

84551195

SPROCKET

Painted 10 Tooth

4шт.

5

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

8шт.

6

296164A2

SENSOR

4шт.

7

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

8шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

24шт.

9

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

8шт.

10

1277726C1

ROLLER,48mm OD x 34mm L

Idler

8шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

12

84387534

CHAIN

Seed Drive

4шт.

13

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

2шт.

14

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

15

1251944C1

HYDRAULIC HOSE

10 ID X 1040mm

2шт.

16

812381C2

HYDRAULIC HOSE

10 ID X 2920mm

2шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

14шт.

18

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

19

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.
