(35.560.AA[07]) - HYDRAULIC LIFT AND FOLD VALVE

Запчасти Case IH 1245 (35.560.AA[07]) - HYDRAULIC LIFT AND FOLD VALVE (35) - HYDRAULIC SYSTEMS

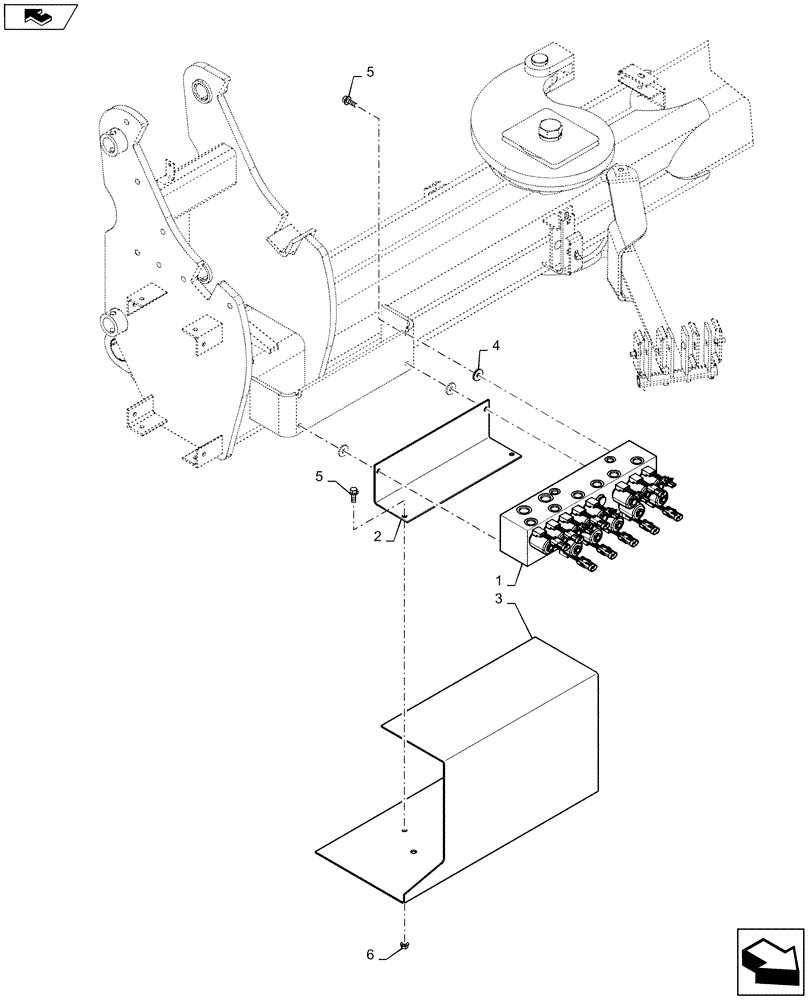

Схема запчастей Case IH 1245 - (35.560.AA[07]) - HYDRAULIC LIFT AND FOLD VALVE (35) - HYDRAULIC SYSTEMS
1
2
3
6
4
5
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

401591A1

VALVE, CONTROL

Lift And Fold

1шт.

2

427823A1

BRACKET

Valve Block Cover

1шт.

3

427821A1

BRACKET

Valve Block Cover

1шт.

4

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

5

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.
