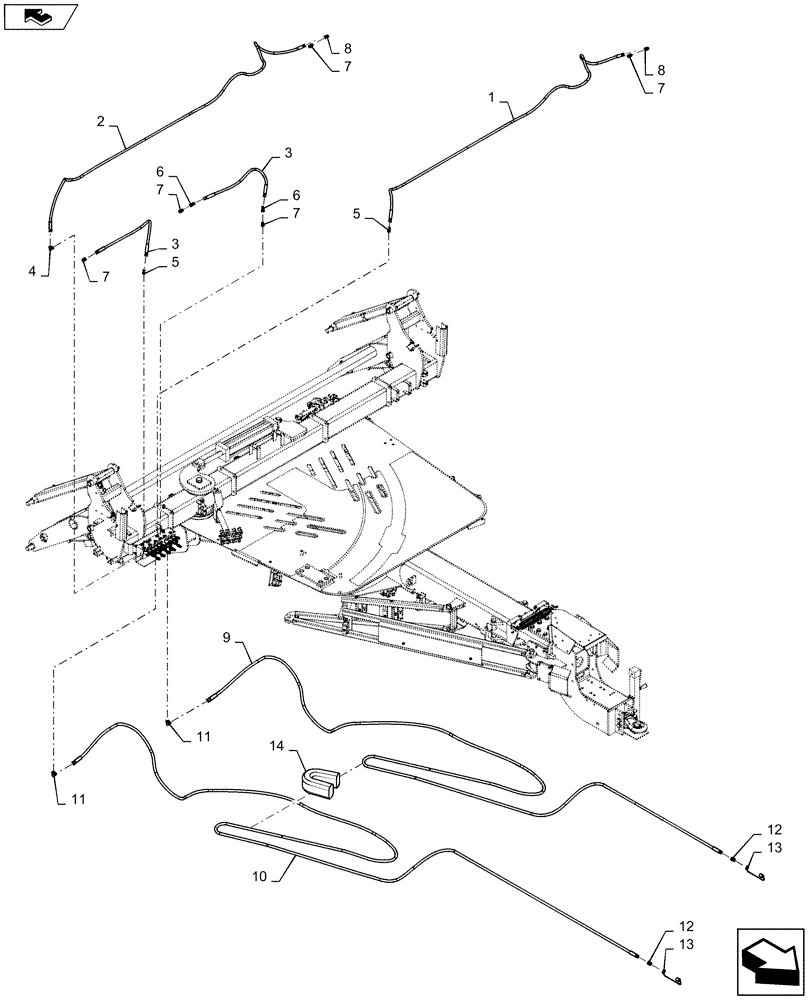

Запчасти Case IH 1245 (35.560.AA[01]) - LIFT AND FOLD HYDRAULICS FOR 24/20 (35) - HYDRAULIC SYSTEMS

1

47480988

HOSE

12.5 ID X 4955 mm

1шт.

2

47480658

HOSE

125.5 ID X 5200 mm

1шт.

3

47413421

HOSE

12.5 ID X 1140 mm

2шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

5

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

6

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

7

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

5шт.

8

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

9

47481030

HOSE

16 ID X 12825 mm

1шт.

10

47481028

HOSE

16 ID X 12700 mm

1шт.

11

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

12

1272399C2

QUICK MALE COUPLING

2шт.

13

333721A1

CAP

Quick Coupler Red

2шт.

14

87500093

HOSE

Sleeve Wrap 762 mm

1шт.
