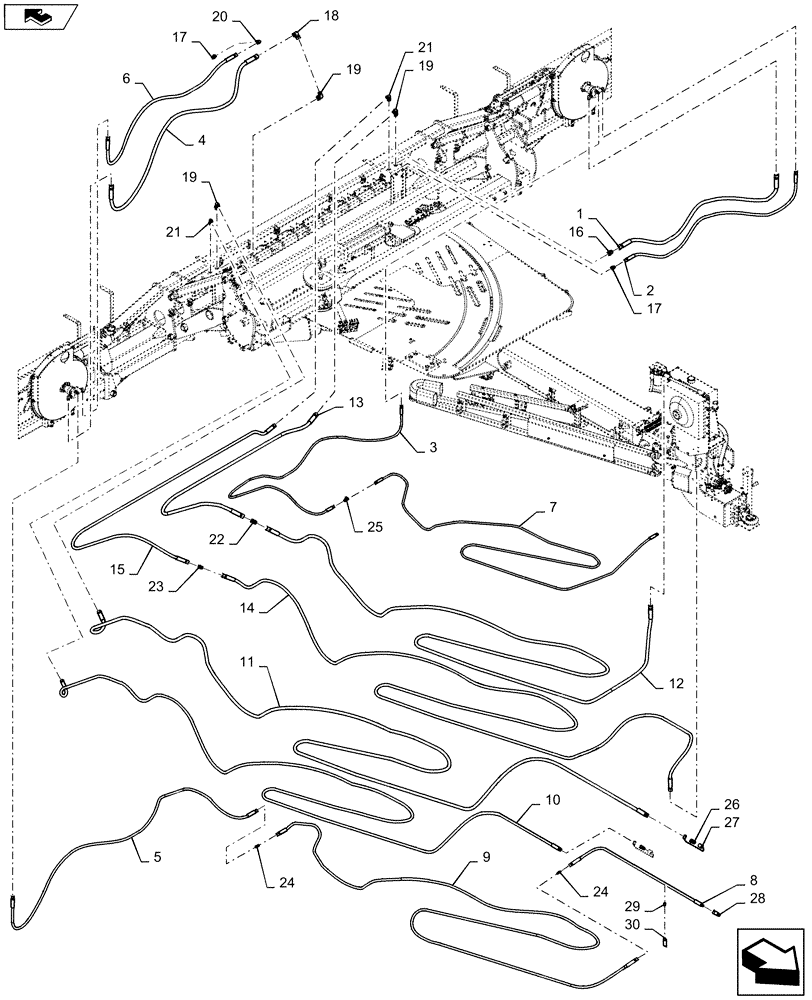

Запчасти Case IH 1245 (35.200.AA[03]) - 22 GPM PTO HYDRAULIC DISTRIBUTION FOR 24/20, 30" SPLIT ROW 16/31 (35) - HYDRAULIC SYSTEMS

1

87448577

HYDRAULIC HOSE,19mm ID x 3100mm L, SAE 100R17

19 ID X 2820mm

1шт.

2

411930A1

HYDRAULIC HOSE

12.5 ID X 2920mm Left Valve

1шт.

3

1284251C1

HYDRAULIC HOSE

10 ID X 8000mm

1шт.

4

87446221

HYDRAULIC HOSE

19 ID X 3100mm

1шт.

5

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

10 ID X 4445mm

1шт.

6

411930A1

HYDRAULIC HOSE

12.5 ID X 2920mm Right Valve

1шт.

7

1284300C1

HYDRAULIC HOSE

10 ID X 9650mm

1шт.

8

47456337

HOSE

10 ID X 2415mm

1шт.

9

1284300C1

HYDRAULIC HOSE

10 ID X 9650mm

1шт.

10

47483264

HOSE

16 ID X 14480mm

1шт.

11

47483282

HOSE

19 ID X 14480mm

1шт.

12

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

19 ID X 11240mm

1шт.

13

87454225

HYDRAULIC HOSE

19 ID X 4450mm

1шт.

14

47483326

HOSE

16 ID X 11950mm

1шт.

15

47483314

HOSE

16 ID X 4450mm

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

17

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

18

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

19

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

20

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

21

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

22

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

23

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

24

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

25

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

26

1272399C2

QUICK MALE COUPLING

2шт.

27

333722A1

CAP

Coupler Green

2шт.

28

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.

29

6033

CABLE TIE,6"

1шт.

30

47432848

DECAL

Tag Case Drain

1шт.
