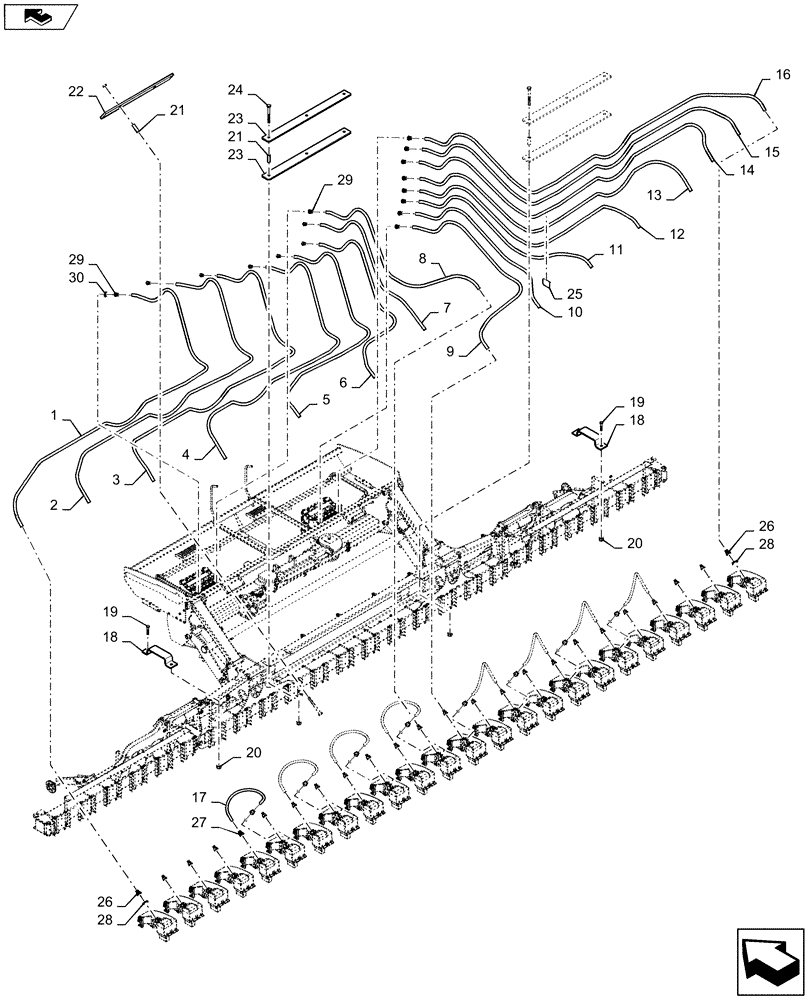

Запчасти Case IH 1245 (79.904.AA[03]) - BULK FILL AIR HOSE FOR 24/20 (79) - PLANTING

1

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6950 mm

1шт.

2

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6600 mm

1шт.

3

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6200 mm

1шт.

4

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 5650 mm

1шт.

5

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 4500 mm

1шт.

6

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 3525 mm

1шт.

7

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 2850 mm

1шт.

8

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 3510 mm

1шт.

9

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 3670 mm

1шт.

10

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 2900 mm

1шт.

11

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 3300 mm

1шт.

12

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 4350 mm

1шт.

13

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 5510 mm

1шт.

14

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6225 mm

1шт.

15

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6410 mm

1шт.

16

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 6760 mm

1шт.

17

87483977

HOSE

PVC Bulk 100 Feet Cut To Length 1150 mm

2шт.

18

450972A1

BRACKET

Hose Support

10шт.

19

84545653

FLANGE BOLT

1/4-20 X 1.50"

12шт.

20

86624020

FLANGE NUT,Flg, 1/4"-20.G5

22шт.

21

47550843

BUSHING

Spacer

10шт.

22

440367A1

BAR

Bulk Seed Hose

2шт.

23

87446071

BAR

Tube Support

4шт.

24

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

10шт.

25

291207C1

CLAMP

Strap Cable Lock

6шт.

26

84329267

COUPLING

1.25"

16шт.

27

84396735

QUICK MALE COUPLING

1"

16шт.

28

84372879

O-RING

Seed Hose Coupling

32шт.

29

84522897

COUPLING

Inductor 1.25"

16шт.

30

47375185

O-RING

Inductor

16шт.
