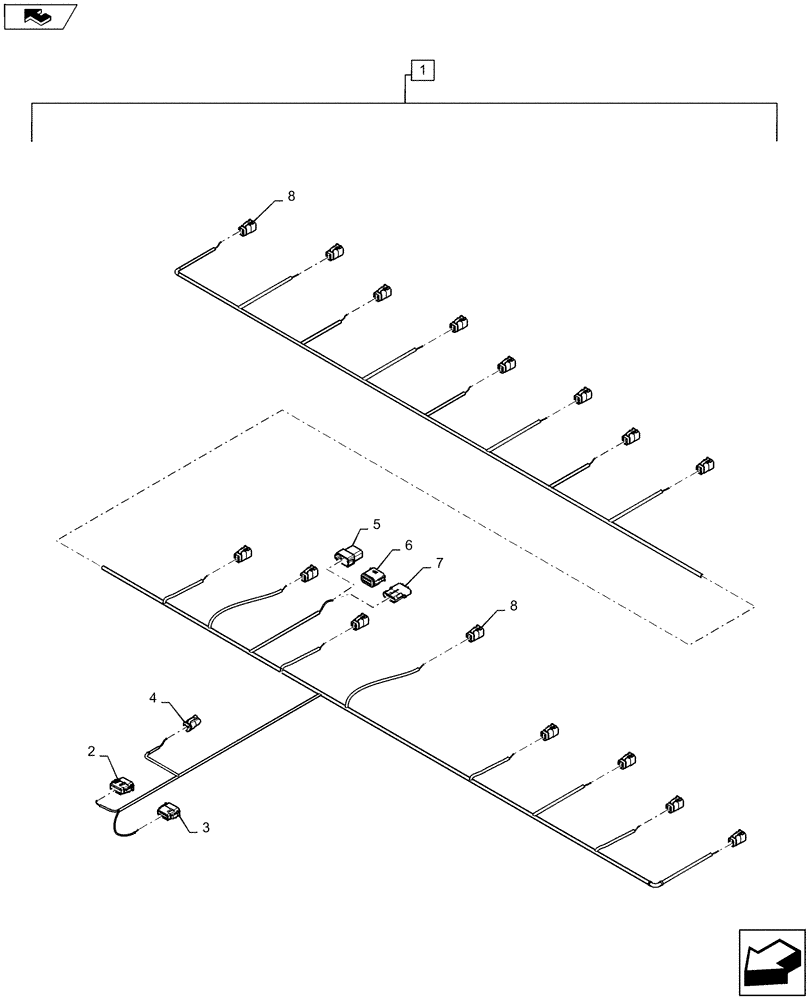

Запчасти Case IH 1245 (55.516.AD[07]) - SEED SENSOR WIRE HARNESS FOR 16/30 (55) - ELECTRICAL SYSTEMS

1

84539990

WIRE HARNESS

Seed Sensor For 16/30 Inc 2 - 8

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Module A

1шт.

3

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Seed Module B

1шт.

4

84074635

CONTACT HOUSING,Female, 3 Pole

Can 2

1шт.

5

87695724

ELEC CONNECTOR,Male, 12 Pole

Left Row Clutches

1шт.

6

87669075

DECAL

Right Row Clutches

1шт.

7

87692802

ELEC CONNECTOR

Seed Sensor Bus

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 1

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 2

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 3

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 4

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 5

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 6

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 7

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 8

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 9

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 10

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 11

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 12

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 13

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 14

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 15

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 16

1шт.
