(44.530.AC[02]) - MAIN CARRIER FOR 12/30, 16/30

Запчасти Case IH 1245 (44.530.AC[02]) - MAIN CARRIER FOR 12/30, 16/30 (44) - WHEELS

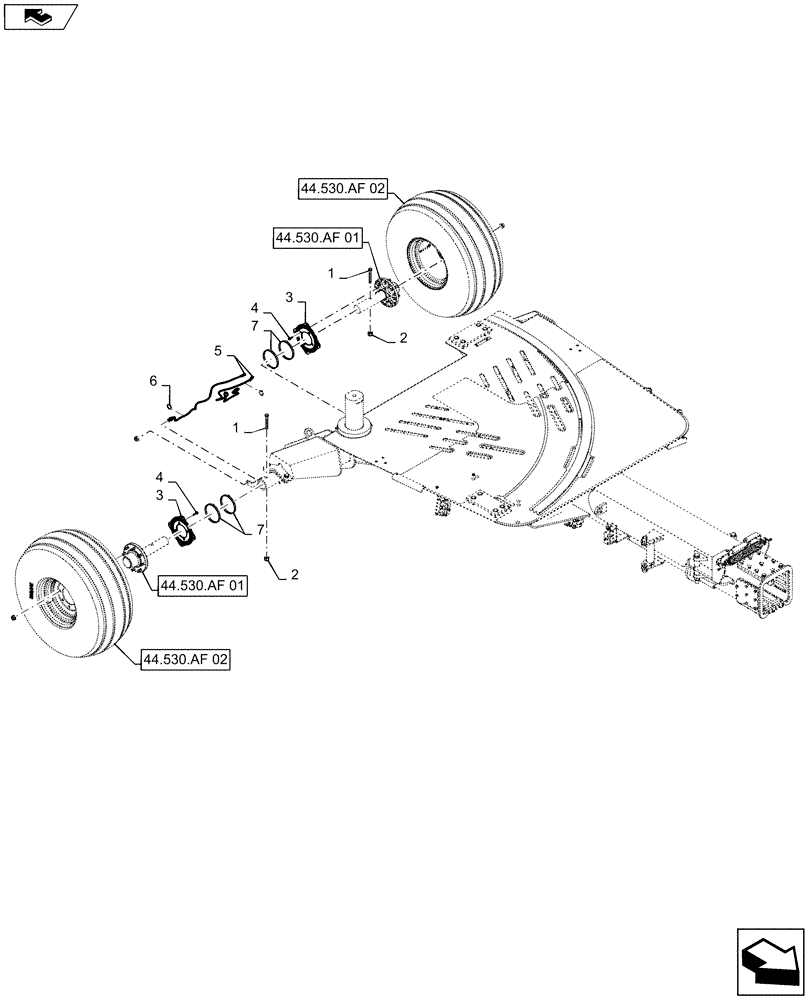

Схема запчастей Case IH 1245 - (44.530.AC[02]) - MAIN CARRIER FOR 12/30, 16/30 (44) - WHEELS
7
44.530.af 01
1
5
7
3
44.530.af 02
4
1
2
home
2
44.530.af 02
3
4
6
44.530.af 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

2

19670

NUT,5/8"-11, GB

4шт.

3

87419220

SPROCKET

50 Tooth

2шт.

4

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

5

324049A1

SENSOR

Hall Efect Zero Speed

2шт.

6

87502038

CABLE TIE

Large

2шт.

7

87502039

CABLE TIE

Medium

4шт.

Выбрано товаров: 7
