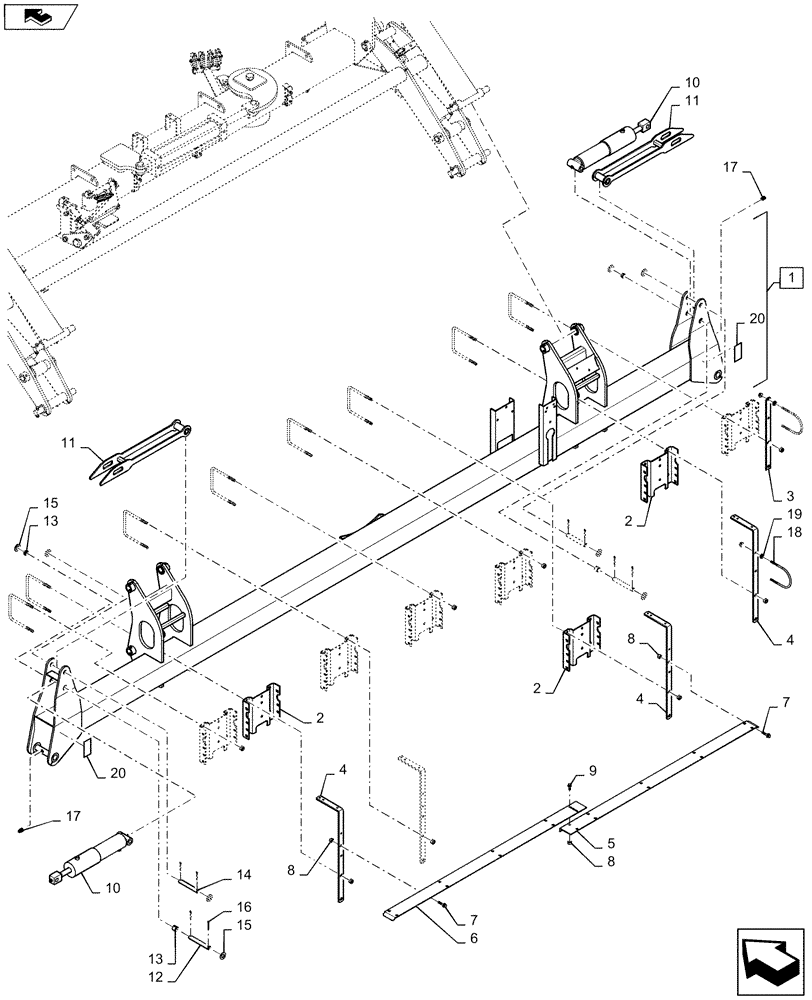

Запчасти Case IH 1245 (39.902.AA[05]) - CENTER SUB BAR FOR 16/30 (39) - FRAMES AND BALLASTING

1

47505836

CROSSBAR

Center 7 X 7 Painted Incl Decals Incl 20

1шт.

2

141728C5

BRACKET

Head 7 X 7

8шт.

3

427829A1

BRACKET

Hose Routing

1шт.

4

427745A2

BAR

Vacuum Support

4шт.

5

87447173

PLATE

Hose Routing

1шт.

6

87446920

PLATE

Hose Routing

1шт.

7

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

8

86625061

NUT,1/4"-20, GB

5шт.

9

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

2шт.

10

87439451R

REMAN-HYD CYLINDER

1245 PLANTER 16/30 (7/13-)

2шт.

10

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

11

87456282

LATCH

Storage

2шт.

12

87460742

PIN

Cylinder Anchor

2шт.

13

97772C1

BUSHING

Tension

4шт.

14

395611A1

PIN

Cylinder Anchor

2шт.

15

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

16

88182

COTTER PIN,1/4" OD x 2" L

8шт.

17

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

18

436288A1

U-BOLT

Hose Routing

2шт.

19

86624020

FLANGE NUT,Flg, 1/4"-20.G5

8шт.

20

47433201

DECAL

Crush Hazard

2шт.
