Запчасти Case IH 1245 (39.100.AY[03]) - PTO DRIVELINE MOUNTING WITH GEARBOX (39) - FRAMES AND BALLASTING

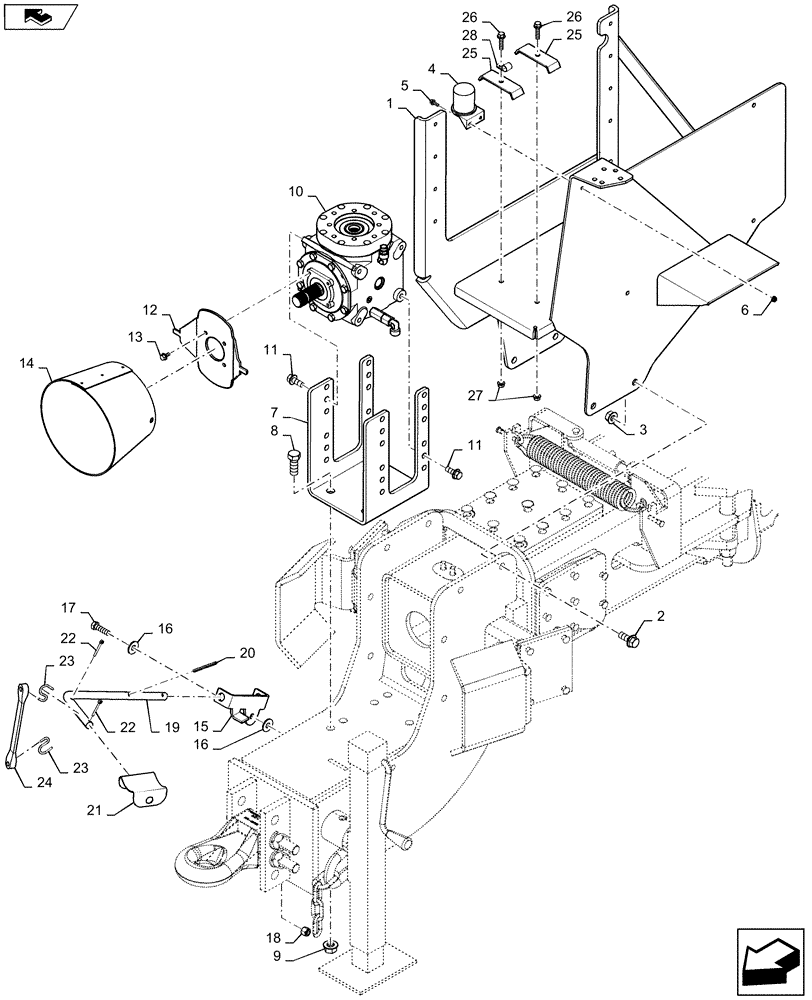

Схема запчастей Case IH 1245 - (39.100.AY[03]) - PTO DRIVELINE MOUNTING WITH GEARBOX (39) - FRAMES AND BALLASTING
22
21
22
13
25
27
9
16
16
26
20
26
7
19
8
23
1
14
23
4
5
11
25
18
28
11
home
3
10
6
15
2
17
24
12

Артикул

Название

Примечание

Количество

1

47484189

MOUNT

Cooler And Tank

1шт.

2

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

3

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

4

382110A1

CONTACT HOUSING

Holder 7 Pin

1шт.

5

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

6

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

7

87655583

MOUNT

Gearbox

1шт.

8

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

4шт.

9

84490435

FLANGE NUT

3/4"

4шт.

10

87479369

GEARBOX

PTO

1шт.

11

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

12

87655641

BRACKET

Shield Mount

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

14

87580079

SHIELD

PTO Drive Shaft

1шт.

15

87655642

MOUNT

Lug Red

1шт.

16

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

17

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

18

87530607

NUT

1/2"

1шт.

19

87576289

BRACKET

Shaft Storage Painted Red

1шт.

20

87690468

ROLL PIN

.250 X 3.000"

2шт.

21

87535934

SADDLE

PTO Shaft Painted Red

1шт.

22

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

23

115680

HOOK

Anchor

2шт.

24

273672

FASTENER

1шт.

25

87545575

HOSE CLAMP

2шт.

26

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

27

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

28

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 28
