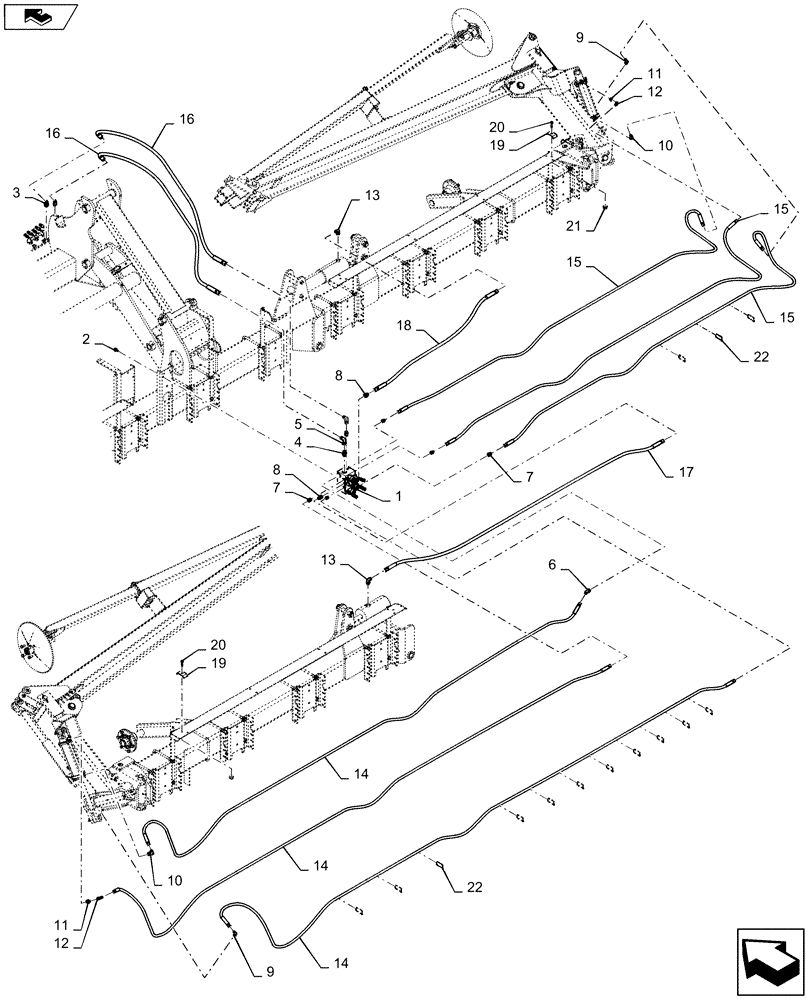

Запчасти Case IH 1245 (35.746.AC[05]) - ROW UNIT MARKERS HYDRAULICS FOR 16/30 (35) - HYDRAULIC SYSTEMS

1

47432550

HYDRAULIC VALVE

Block Marker

1шт.

2

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

3

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

2шт.

4

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8"

2шт.

5

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

6

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

7

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

5шт.

8

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

10

367841A1

ELBOW

2шт.

11

1263477C3

HYD CONNECTOR

One Way Orifice

2шт.

12

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

13

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

14

47481175

HOSE

10 ID X 8765 mm

3шт.

15

47481173

HOSE

10 ID X 5840 mm

3шт.

16

47481020

HOSE

16 ID X 2380 mm

2шт.

17

47480658

HOSE

12.5 ID X 5200 mm

1шт.

18

47409442

HOSE

12.5 ID X 2030 mm

1шт.

19

427781A1

HOSE CLAMP

2 Hose

2шт.

20

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

22

291207C1

CLAMP

Cable Lock

14шт.
