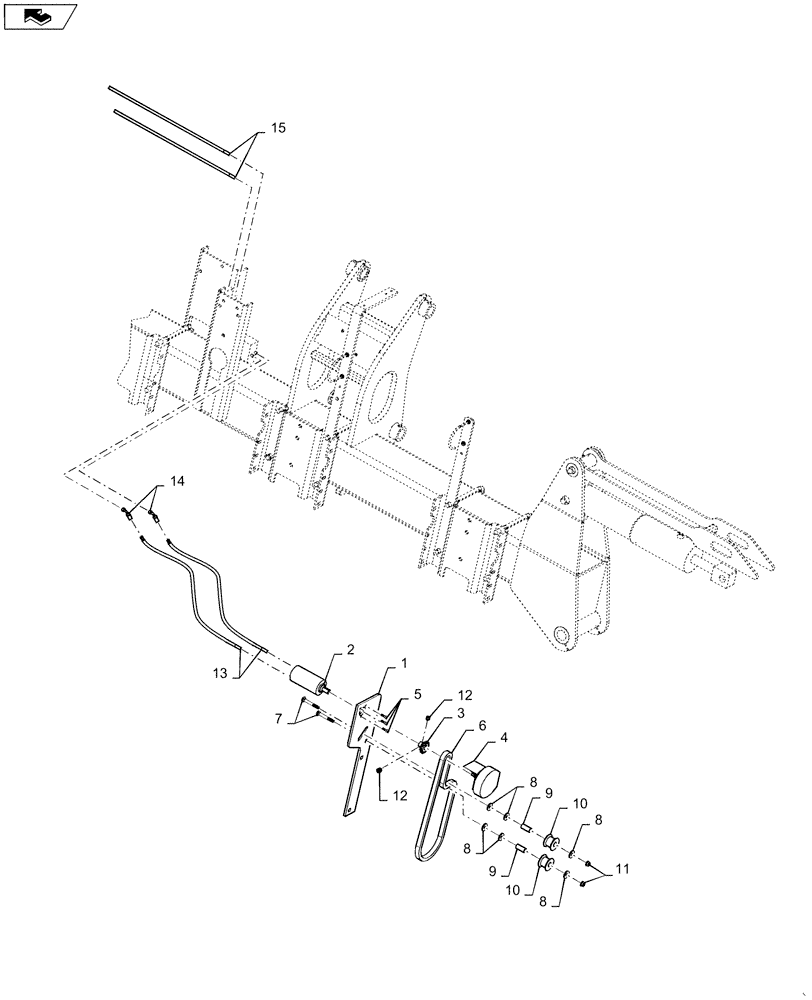

Запчасти Case IH 1245 (35.745.AA[14]) - HYDRAULIC DIRECT DRIVE METER BULK FILL FOR 16/30 (35) - HYDRAULIC SYSTEMS

1

436716A2

BRACKET

Seed Drive Motor

2шт.

2

293288A1

MOTOR

Meter Drive

2шт.

2

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

2

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

84551195

SPROCKET

Painted 10 Tooth

2шт.

4

296164A2

SENSOR

Application Rate

2шт.

5

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

6

84387534

CHAIN

Seed Drive

2шт.

7

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

9

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

10

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

12

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.

13

393704R92

HYDRAULIC HOSE

3/8" X 33"

2шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

15

435694A1

HYDRAULIC HOSE

3/8" X 33"

2шт.
