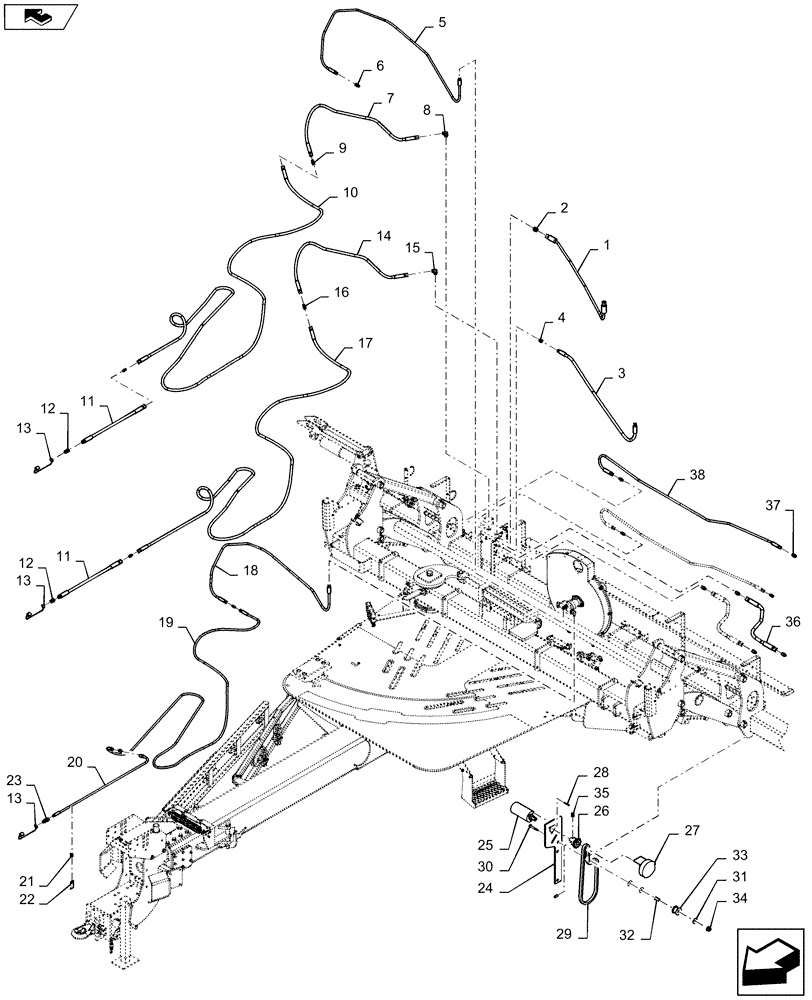

Запчасти Case IH 1245 (35.745.AA[03]) - DIRECT DRIVE WITH HOPPER FOR 16/30 (35) - HYDRAULIC SYSTEMS

1

410544A1

HYDRAULIC HOSE

19 ID X 1780mm

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

3

1301966C2

HYDRAULIC HOSE

12.5 ID X 2030mm

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

5

435694A1

HYDRAULIC HOSE

10 ID X 6605mm

1шт.

6

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

7

47452729

HOSE

16 ID X 4825

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

10

47483326

HOSE

16 ID X 11950mm

1шт.

11

47483300

HOSE

16 ID X 680mm

1шт.

12

1272399C2

QUICK MALE COUPLING

2шт.

13

333722A1

CAP

Quick Coupler Green

2шт.

14

87454316

HYDRAULIC HOSE,19mm ID x 2040mm L, SAE 100R17

19 ID X 4775mm

1шт.

15

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

17

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

19 ID X 11240mm

1шт.

18

47483306

HOSE

19 ID X 1580mm

1шт.

19

1284300C1

HYDRAULIC HOSE

10 ID X 9650mm

1шт.

20

47456337

HOSE

10 ID X 2415mm

1шт.

21

6033

CABLE TIE,6"

1шт.

22

47432848

DECAL

Tag Case Drain

1шт.

23

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.

24

436716A2

BRACKET

Seed Drive Motor

2шт.

25

293288A1

MOTOR

Meter Drive

2шт.

25

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

25

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

26

84551195

SPROCKET

Painted 10 Tooth

2шт.

27

296164A2

SENSOR

Application Rate

2шт.

28

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

29

84387534

CHAIN

Seed Drive

2шт.

30

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

31

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

32

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

33

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

34

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

35

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.

36

393704R92

HYDRAULIC HOSE

3/8" X 33"

2шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

38

435694A1

HYDRAULIC HOSE

3/8" X 33"

2шт.
