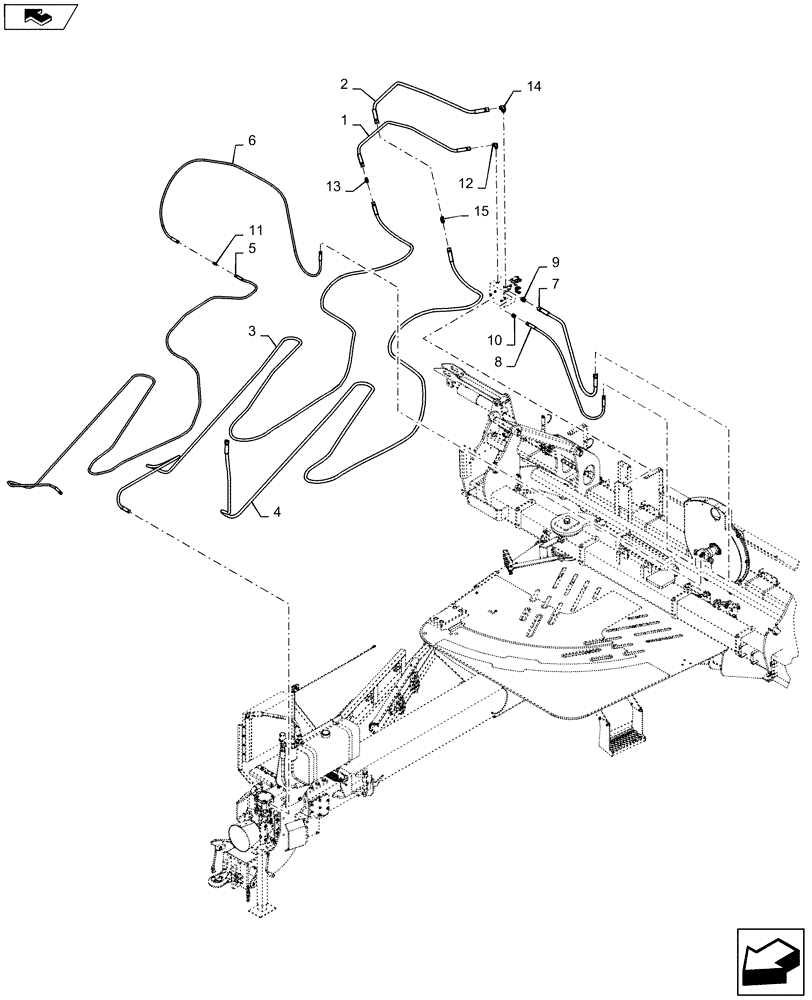

Запчасти Case IH 1245 (35.200.AA[11]) - 22 GPM PTO/DRIVELINE HYDRAULIC DISTRIBUTION FOR 16/30 (35) - HYDRAULIC SYSTEMS

1

47452729

HOSE

16 ID X 14480mm

1шт.

2

87454316

HYDRAULIC HOSE,19mm ID x 2040mm L, SAE 100R17

19 ID X 14480mm

1шт.

3

87454229

HYDRAULIC HOSE,19mm ID x 11240mm L, SAE 100R17

19 ID X 11240mm

1шт.

4

47483326

HOSE

16 ID X 11950mm

1шт.

5

1284300C1

HYDRAULIC HOSE

10 ID X 9650mm

1шт.

6

435694A1

HYDRAULIC HOSE

10 ID X 4445mm

1шт.

7

410544A1

HYDRAULIC HOSE

19 ID X 3100mm

1шт.

8

1301966C2

HYDRAULIC HOSE

12.5 ID X 2920mm

1шт.

9

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

10

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

11

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

13

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

14

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

15

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.
