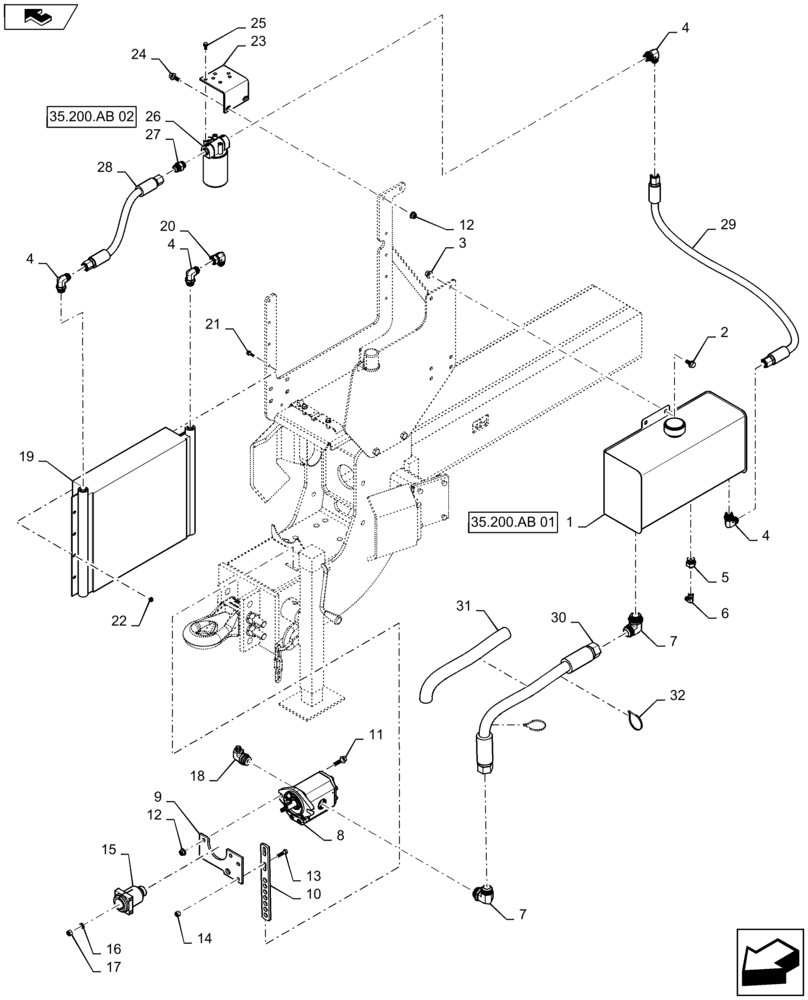

Запчасти Case IH 1245 (35.200.AA[07]) - 22 GPM PTO PACKAGE (35) - HYDRAULIC SYSTEMS

1

84526682

TANK

6.5 Gallon

1шт.

2

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

3

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

4

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

5

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

7

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

8

87619629

PUMP

PTO Drive

1шт.

8

87619629R

REMAN-HYD PUMP

PTO Drive

1шт.

8

87619629C

CORE-HYDRAULIC PUMP

PTO Drive

1шт.

9

437630A1

PLATE

Pump Mounting

1шт.

10

437631A1

BRACKET

Adjustment

1шт.

11

86521616

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

2шт.

12

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

13

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

14

86637736

NUT,7/16"-14, GB

2шт.

15

1958268C1

COUPLING

1 3/4"

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

18

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

1шт.

19

87618983

COOLER ASSY.

Oil

1шт.

20

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

21

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

23

127715A5

SUPPORT

Filter

1шт.

24

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

25

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

26

87404509

FILTER ASSY

1шт.

27

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

28

86985197

HYDRAULIC HOSE

.75 X 21"

1шт.

29

86985198

HYDRAULIC HOSE

.75 X 21"

1шт.

30

426727A1

HYDRAULIC HOSE,31.5mm ID x 1880mm L, SAE 100R4

1.25 X 74"

1шт.

31

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

1.25 X 74"

1шт.

32

291207C1

CLAMP

Cable Lock

2шт.
