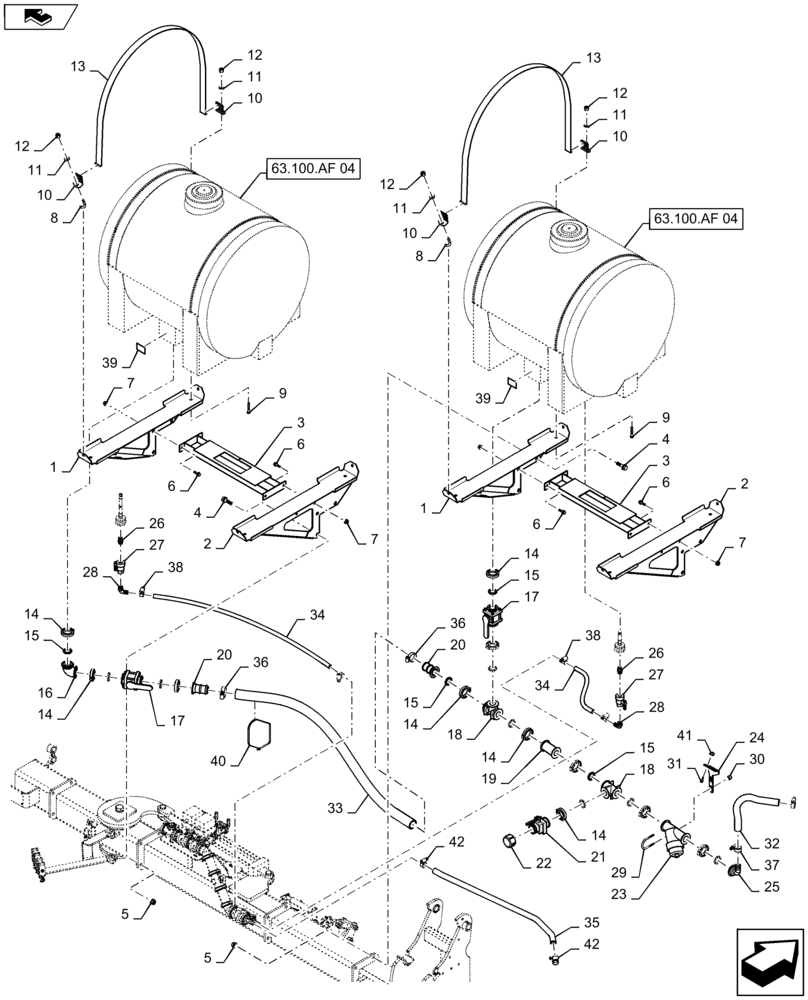

Запчасти Case IH 1245 (63.100.AF[03]) - LIQUID FERTILIZER BULK TANK SYSTEM FOR 16/30 (63) - CHEMICAL APPLICATORS

1

427785A2

BRACKET

Fertilizer Tank

2шт.

2

427783A2

BRACKET

Fertilizer Tank

2шт.

3

427789A1

SUPPORT

Connector 230 Gallon Tank

2шт.

4

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

12шт.

5

84490435

FLANGE NUT

3/4 X 2.50"

12шт.

6

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

7

86521607

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

8

441220A1

SPECIAL BOLT

1/2-13

4шт.

9

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

10

364318A1

ANCHOR

Anchor Strap

8шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

12

87530607

NUT

1/2"

8шт.

13

339403A1

STRAP

Liquid Fertilizer Tank

4шт.

14

406040A1

CLAMP,90-100 in/lbs

2"

11шт.

15

408348A1

GASKET

1-1/2"

11шт.

16

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

Poly 90 Deg

1шт.

17

405800A1

VALVE,2" Flange Ball Valve

2" With C-Flange

2шт.

18

405779A1

TEE,2" Port Flanged Tee

2" Manifold

2шт.

19

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2" Manifold Full Port Flange

1шт.

20

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Manifold Barb

2шт.

21

405801A1

VALVE,2" Flange x 2" Male Adapter

2" Male

1шт.

22

405799A1

DUST CAP,2" Cap w/Short Arms

2" Pipe

1шт.

23

405798A1

STRAINER ELEMENT,AAH

With 80 Mesh Screen

1шт.

24

444324A2

BRACKET

Filter Support

1шт.

25

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Manifold X 1-1/4 Barb

1шт.

26

405788A1

NIPPLE,3/4" Short Poly Nipple

1" Nipple

2шт.

27

405795A1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

Ball Check

2шт.

28

405778A1

ELBOW

3/4"

2шт.

29

87413269

U-BOLT

3/8 X 2.87W X 4D

1шт.

30

86985855

LOCK NUT

3/8"

2шт.

31

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

33

86988667

HOSE,2.00" ID x 100.00'

1шт.

34

241923A1

HOSE

Bulk 3/4"

2шт.

35

134329C3

HOSE

Bulk 1"

1шт.

36

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

37

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

38

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

4шт.

39

47507174

CAUTION DECAL

Remove Tank Lid

2шт.

40

112620A1

CABLE TIE

34"

1шт.

41

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

42

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.
