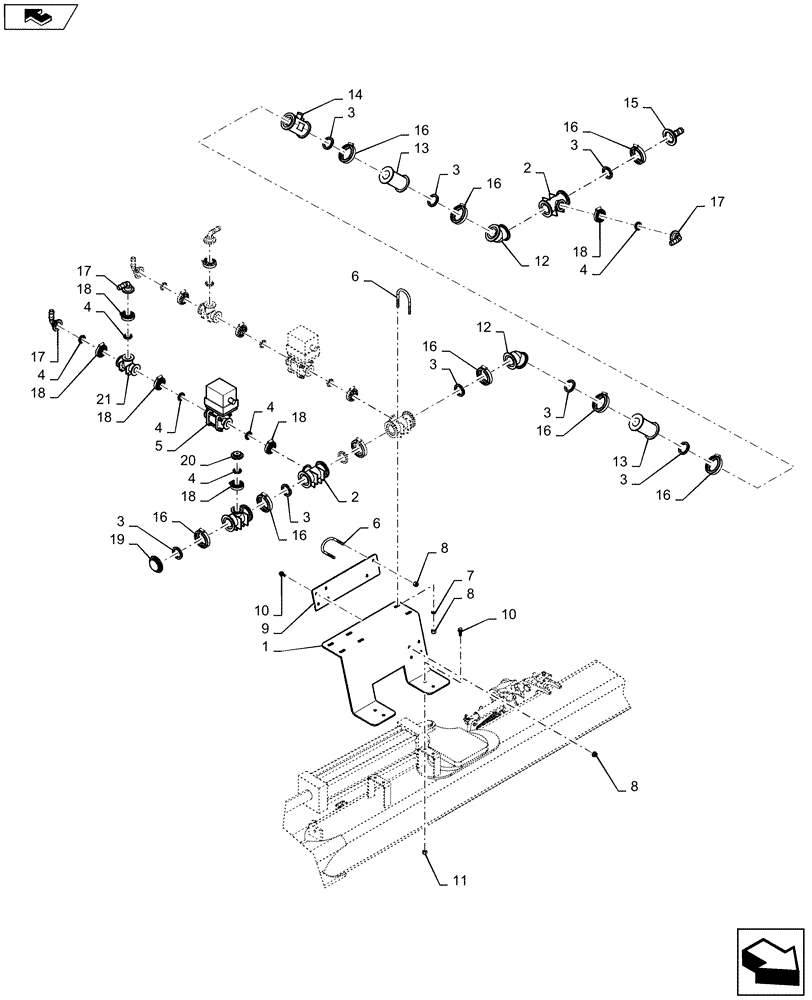

Запчасти Case IH 1245 (63.100.AA[03]) - LIQUID FERTILIZER VALVE 2 SECTION FOR 12/30,16/30 (63) - CHEMICAL APPLICATORS

1

86983911

BRACKET

Fertilizer Valve Mount

1шт.

2

86984089

TEE,2" Port x 1" Flanged Tee

2" X 2" X 1"

4шт.

3

408348A1

GASKET

1-1/2

10шт.

4

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1"

10шт.

5

406039A1

SOLENOID VALVE,1" Electric Valve

1" Electric Ball

2шт.

6

87413269

U-BOLT

3/8 X 2.87 W X 4D

3шт.

7

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

8

86985855

LOCK NUT

3/8"

6шт.

9

86990136

BRACKET

Liquid Fertilizer

1шт.

10

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

12

86984086

COUPLING

45 Deg

2шт.

13

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2"

2шт.

14

406037A2

METER

Flow

1шт.

15

86987616

FITTING,2" Flange x 1" Hose Barb

2" X 1"

1шт.

16

406040A1

CLAMP,90-100 in/lbs

2"

10шт.

17

405785A1

ELBOW

1" X 3/4" X 90 Deg

5шт.

18

406041A1

CLAMP,58.51mm

1"

10шт.

19

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.

20

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1"

1шт.

21

405787A1

TEE,1" Flanged Tee

1"

2шт.
