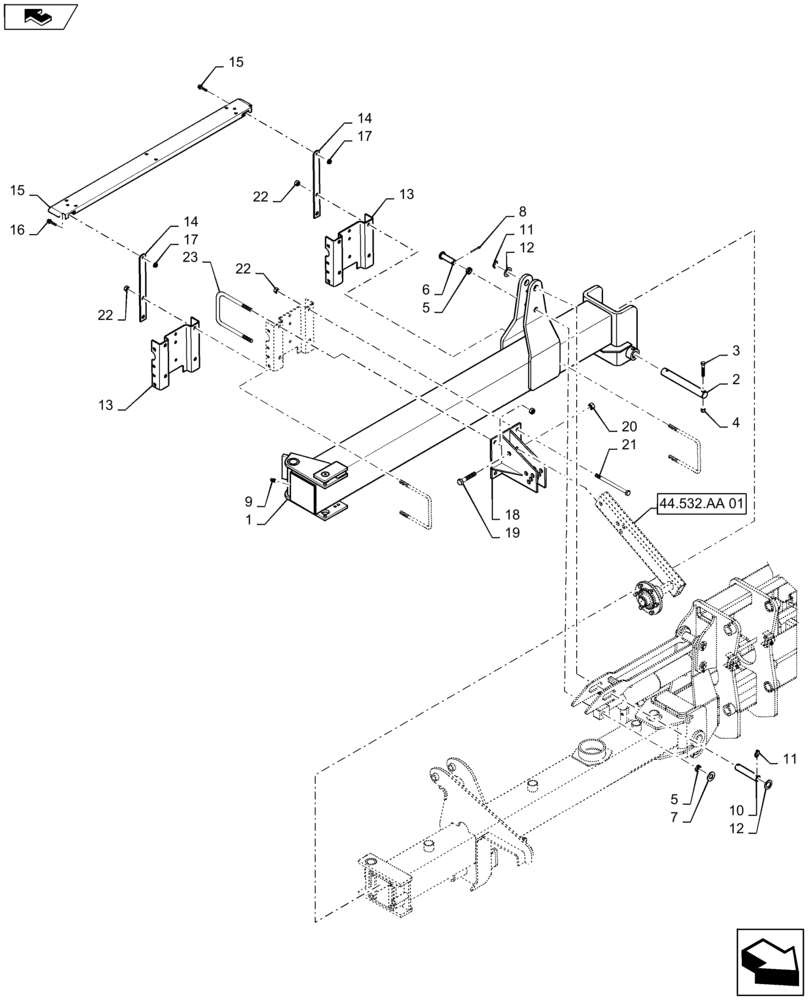

Запчасти Case IH 1245 (39.902.AA[13]) - OUTER WING RIGHT FOR 12/30 (39) - FRAMES AND BALLASTING

1

87460955

TUBE ASSY.

Right Wing Painted Red

1шт.

2

401442A1

PIVOT PIN

Breakaway

1шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

4

88871

NUT,1/2"-13, GC

1шт.

5

1546916C1

BUSHING,25.4mm ID x 31.75mm OD x 15.88mm L

Tension

2шт.

6

87319527

HEADED PIN,1" OD x 3-3/4" L

.500 X 2.250

1шт.

7

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

1шт.

9

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

10

87458916

PIN

Cylinder Anchor

1шт.

11

87459046

LINCH PIN

2шт.

12

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

13

141728C5

BRACKET

Head 7 X 7

3шт.

14

87447161

BRACKET

Hose Routing

2шт.

15

87446922

PLATE

Hose Routing

1шт.

16

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

18

427733A1

BRACKET

Wheel Mounting

1шт.

19

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

20

280954

NUT,3/4"-10, G5

2шт.

21

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

2шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

23

1250813C1

U-BOLT

7 X 7

1шт.
