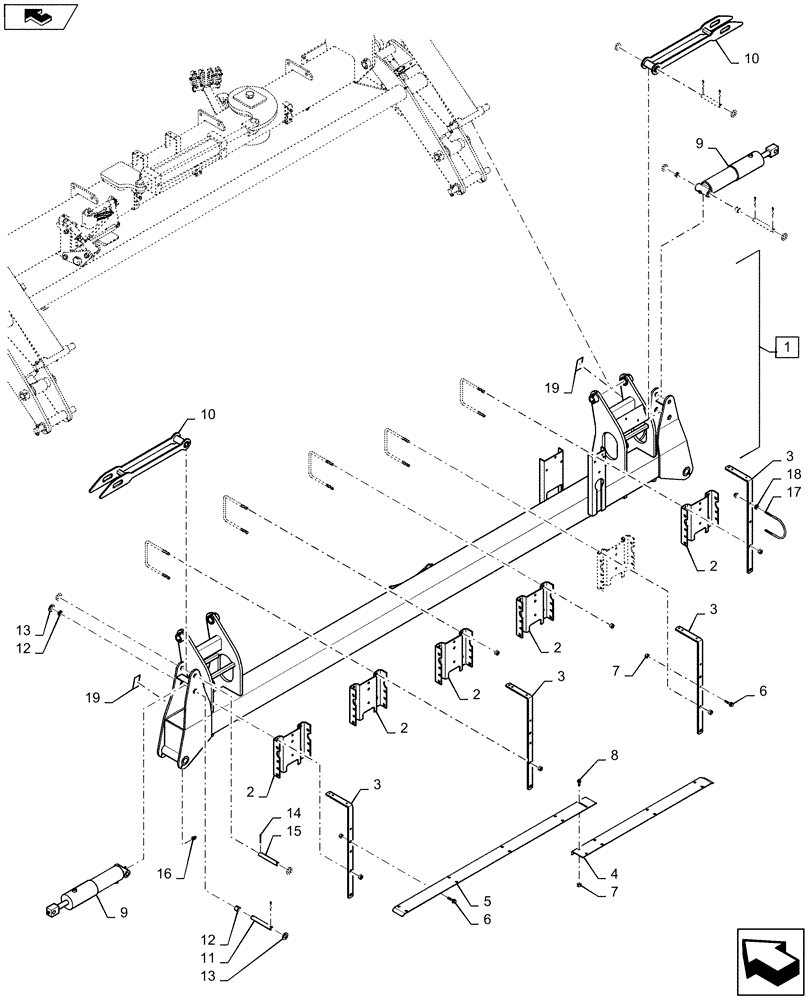

Запчасти Case IH 1245 (39.902.AA[04]) - CENTER SUB BAR FOR 12/30 (39) - FRAMES AND BALLASTING

1

47505835

CROSSBAR

Center 7 X 7 Painted Incl Decals Incl 19

1шт.

2

141728C5

BRACKET

Head 7 X 7

6шт.

3

427745A2

BAR

Vacuum Support

4шт.

4

87446924

PLATE

Hose Routing

1шт.

5

87446920

PLATE

Hose Routing

1шт.

6

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

7

86625061

NUT,1/4"-20, GB

5шт.

8

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

2шт.

9

87439451R

REMAN-HYD CYLINDER

1245 PLANTER 12/30 (7/13-)

2шт.

9

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

10

87456282

LATCH

Storage

2шт.

11

87460742

PIN

Wing Cylinder Anchor

2шт.

12

97772C1

BUSHING

Tension

4шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

14

88182

COTTER PIN,1/4" OD x 2" L

8шт.

15

395611A1

PIN

Cylinder Anchor

2шт.

16

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

17

436288A1

U-BOLT

Hose Routing

1шт.

18

86624020

FLANGE NUT,Flg, 1/4"-20.G5

4шт.

19

47433201

DECAL

Crush Hazard

2шт.
