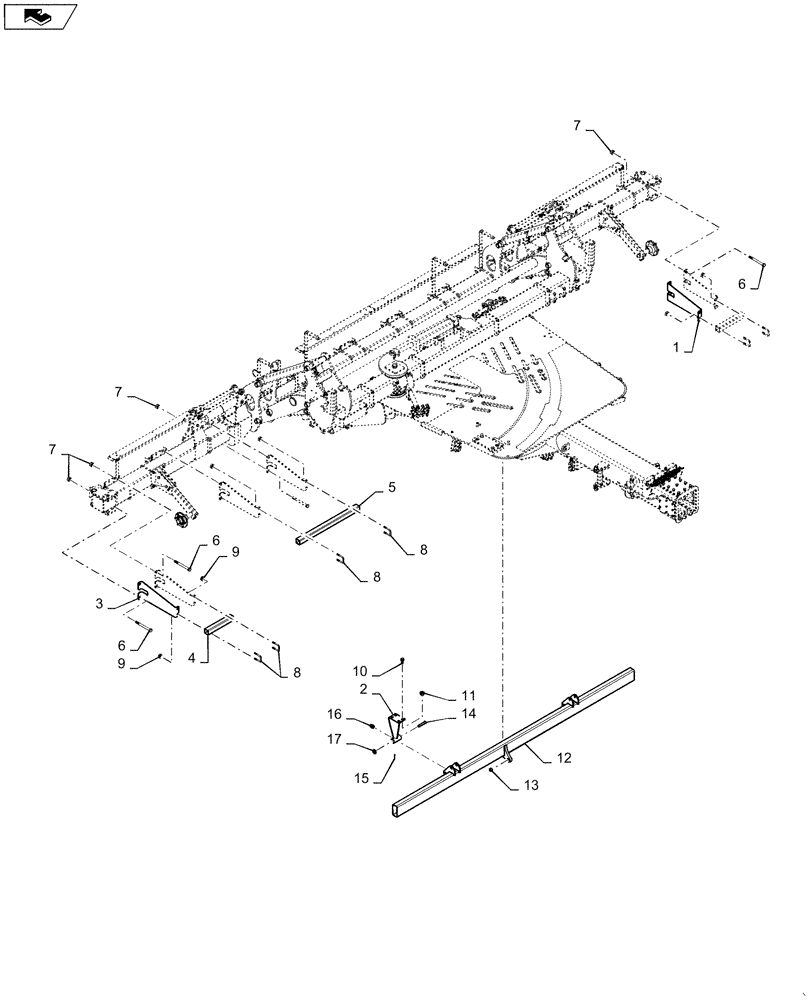

Запчасти Case IH 1245 (39.140.AF[04]) - LIQUID FERTILIZER COULTER MOUNTING FOR 12/30 (39) - FRAMES AND BALLASTING

1

427755A1

BRACKET

Right Fertilizer Opener 22"

4шт.

2

87447077

PIVOT

Fertilizer Mount

2шт.

3

427753A1

BRACKET

Left Fertilizer Opener 22"

4шт.

4

258417A1

TUBE,405 mm Length

2шт.

5

314323A1

TUBE,965 mm Length

2шт.

6

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

16шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

8

1344524C1

U-BOLT

1/2 X 2-1/2"X 3-1/2"

8шт.

9

280431

NUT,1/2"-13, G5

16шт.

10

47375979

FLANGE BOLT,1/2" - 13 x 1-1/2", Gr 8

1/2 -13 X 1.5"

8шт.

11

86544265

FLANGE NUT,Flg, 1/2"-13, G8

8шт.

12

87421514

TUBE ASSY.

Fertilizer Bar

1шт.

13

64601C1

BUSHING

Tension

1шт.

14

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

15

88182

COTTER PIN,1/4" OD x 2" L

2шт.

16

87414

LUBE NIPPLE,1/4" - 28

2шт.

17

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

2шт.
