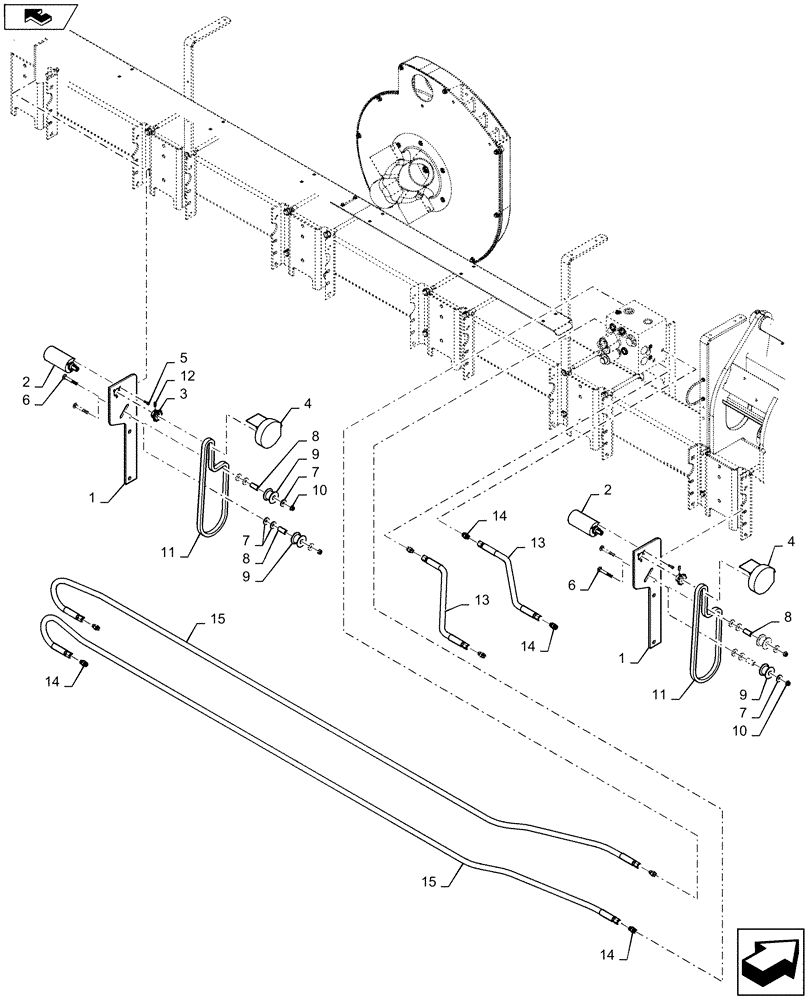

Запчасти Case IH 1245 (35.745.AA[13]) - HYDRAULIC DIRECT DRIVE METER BULK FILL FOR 12/30 (35) - HYDRAULIC SYSTEMS

1

436716A2

BRACKET

Seed Drive Motor

2шт.

2

293288A1

MOTOR

Meter Drive

2шт.

2

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

2

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

84551195

SPROCKET

Painted 10 Tooth

2шт.

4

296164A2

SENSOR

Application Rate

2шт.

5

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

6

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

7

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

8

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

9

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

11

84387534

CHAIN

Seed Drive

2шт.

12

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.

13

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

15

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

2шт.
