Запчасти Case IH 1245 (35.745.AA[02]) - DIRECT DRIVE WITH HOPPER FOR 12/30 (35) - HYDRAULIC SYSTEMS

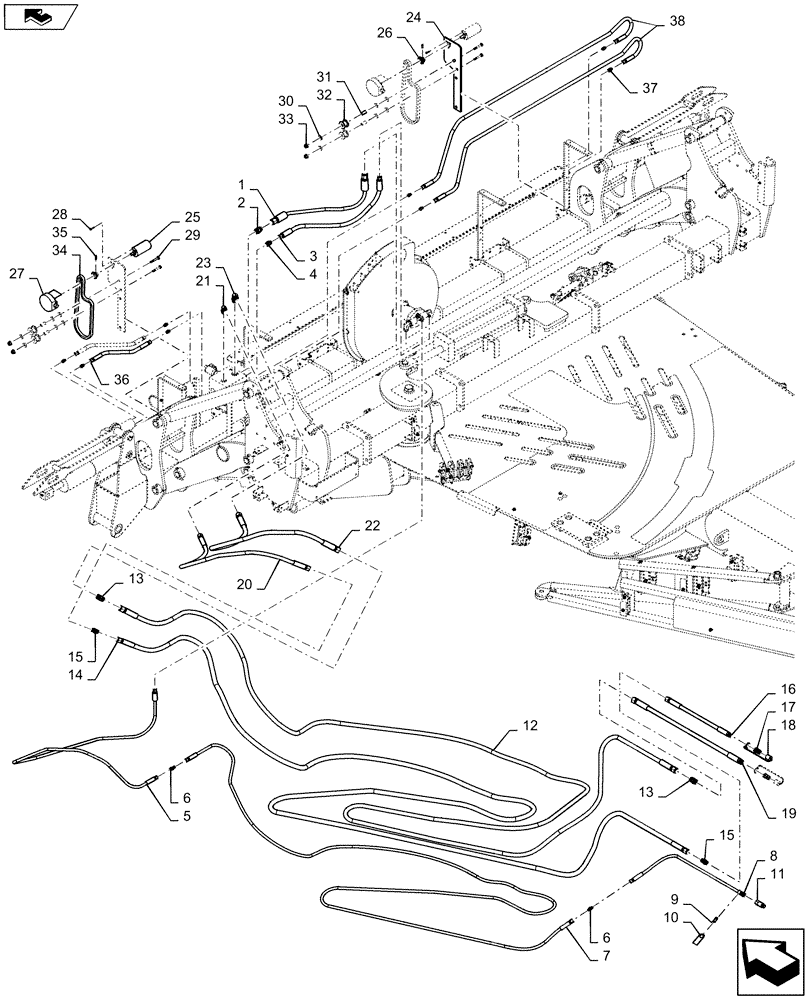

Схема запчастей Case IH 1245 - (35.745.AA[02]) - DIRECT DRIVE WITH HOPPER FOR 12/30 (35) - HYDRAULIC SYSTEMS
19
10
20
37
6
9
32
21
33
35
36
30
1
7
4
15
6
home
5
38
2
34
8
29
13
13
28
12
26
31
23
24
25
27
14
22
16
18
11
17
3
15

Артикул

Название

Примечание

Количество

1

410544A1

HYDRAULIC HOSE

16 ID X 1780mm

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

3

1301966C2

HYDRAULIC HOSE

12.5 ID X 2030mm

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

5

1284298C1

HYDRAULIC HOSE

10 ID X 6605mm

1шт.

6

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

7

1284299C1

HYDRAULIC HOSE

10 ID X 8890mm

1шт.

8

47456337

HOSE

10 ID X 2415mm

1шт.

9

6033

CABLE TIE,6"

1шт.

10

47432848

DECAL

Tag Case Drain

1шт.

11

385358A1

QUICK MALE COUPLING,3/8"

3/8"

1шт.

12

87454626

HYDRAULIC HOSE

19 ID X 9525mm

1шт.

13

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

14

47484841

HOSE

16 ID X 10330mm

1шт.

15

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

16

47483300

HOSE

16 ID X 680mm

1шт.

17

1272399C2

QUICK MALE COUPLING

2шт.

18

333722A1

CAP

2шт.

19

47483306

HOSE

19 ID X 1580mm

1шт.

20

47487259

HOSE

16 ID X 4825mm

1шт.

21

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

22

87454627

HYDRAULIC HOSE

19 ID X 4775mm

1шт.

23

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

24

436716A2

BRACKET

Seed Drive Motor

1шт.

25

293288A1

MOTOR

Meter Drive

2шт.

25

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

25

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

26

84551195

SPROCKET

Painted 10 Tooth

2шт.

27

296164A2

SENSOR

Application Rate

2шт.

28

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

29

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

30

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

31

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

32

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

33

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

34

84387534

CHAIN

Seed Drive

2шт.

35

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.

36

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

38

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

2шт.

Выбрано товаров: 40
