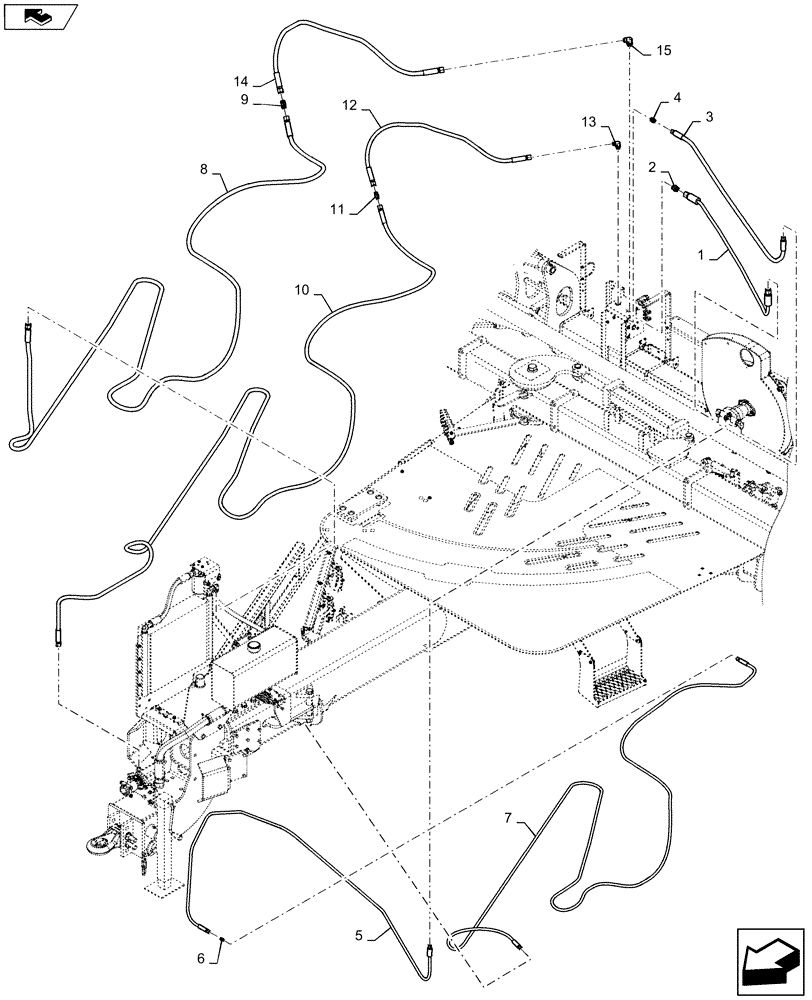

Запчасти Case IH 1245 (35.200.AA[20]) - 22 GPM PTO HYDRAULIC DISTRIBUTION WITHOUT BULK FILL FOR 12/30 (35) - HYDRAULIC SYSTEMS

1

410544A1

HYDRAULIC HOSE

19 ID X 1780mm

1шт.

2

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

3

1301966C2

HYDRAULIC HOSE

12.5 ID X 2030mm

1шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

5

1284298C1

HYDRAULIC HOSE

10 ID X 6605mm

1шт.

6

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

7

1284299C1

HYDRAULIC HOSE

10 ID X 8890mm

1шт.

8

87454626

HYDRAULIC HOSE

19 ID X 9525mm

1шт.

9

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

10

47484841

HOSE

16 ID X 10330mm

1шт.

11

128823

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

12

47487259

HOSE

16 ID X 4825mm

1шт.

13

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

14

87454627

HYDRAULIC HOSE

19 ID X 4775mm

1шт.

15

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.
